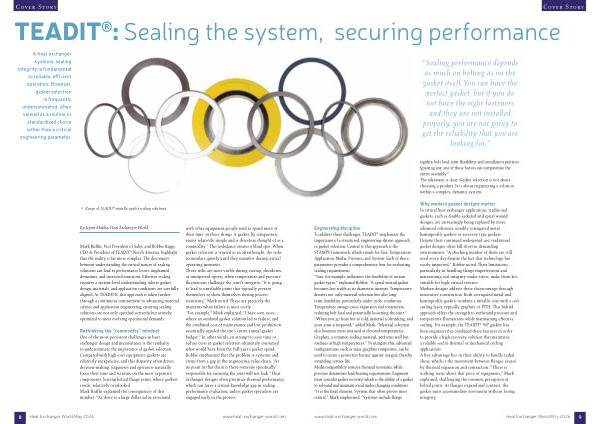

Cover Story
, securing performance
“ Sealing performance depends as much on bolting as on the gasket itself. You can have the perfect gasket, but if you do not have the right fasteners and they are not installed properly, you are not going to get the reliability that you are looking for.”
rigidity, bolt load, joint flexibility, and installation practices. Ignoring any one of these factors can compromise the entire assembly.” The takeaway is clear. Gasket selection is not about choosing a product. It is about engineering a solution within a complex, dynamic system.
Engineering discipline To address these challenges, TEADIT ® emphasizes the importance of a structured, engineering-driven approach to gasket selection. Central to this approach is the STAMPS framework, which stands for Size, Temperature, Application, Media, Pressure, and System. Each of these parameters provides a comprehensive lens for evaluating sealing requirements.“ Size, for example, influences the feasibility of certain gasket types,” explained Robbie.“ A spiral wound gasket becomes less stable as its diameters increase. Temperature dictates not only material selection but also longterm durability, particularly under cyclic conditions. Temperature swings cause expansion and contraction, reducing bolt load and potentially loosening the joint.”“ When you go from hot to cold, material is shrinking, and your joint is impacted,” added Mark.“ Material selection also becomes more nuanced at elevated temperatures. Graphite, a common sealing material, performs well but oxidizes at high temperatures.” To mitigate this, advanced configurations, such as mica-graphite composites, can be used to create a protective barrier against oxygen, thereby extending service life. Media compatibility ensures chemical resistance, while pressure determines load-bearing requirements. Engineers must consider gasket recovery, which is the ability of a gasket to rebound and maintain a seal under changing conditions.“ It is the final element, System, that often proves most critical,” Mark emphasized.“ Systems include flange
Why modern gasket designs matter In critical heat exchanger applications, traditional gaskets, such as double-jacketed and spiral wound designs, are increasingly being replaced by more advanced solutions, notably corrugated metal, kammprofile gaskets or recovery type gaskets. Despite their continued widespread use, traditional gasket designs often fall short in demanding environments.“ A shocking number of them are still used every day despite the fact that technology has vastly improved,” Robbie noted. Their limitations, particularly in handling flange imperfections and maintaining seal integrity under stress, make them less suitable for high-critical services. Modern designs address these shortcomings through innovative construction. Both corrugated metal and kammprofile gaskets combine a metallic core with a soft sealing layer, typically graphite or PTFE. This hybrid approach offers the strength to withstand pressure and temperature fluctuations while maintaining effective sealing. For example, the TEAIDT ® 907 gasket, has been engineered to combined these features in order to provide a high recovery, solution that maintains a reliable seal in thermal or mechanical cycling applications. A key advantage lies in their ability to handle radial shear, which is the movement between flanges caused by thermal expansion and contraction.“ There is nothing static about that piece of equipment,” Mark explained, challenging the common perception of bolted joints. As flanges expand and contract, the gasket must accommodate movement without losing integrity. www. heat-exchanger-world. com Heat Exchanger World May 2026
