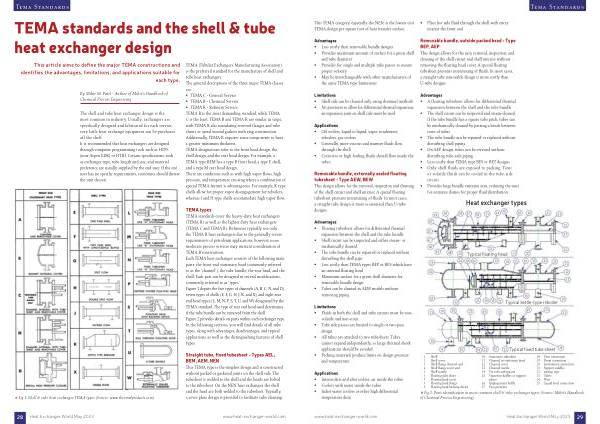

Tema Standards
This TEMA category , especially the NEN , is the lowest cost TEMA design per square foot of heat transfer surface .
Advantages
• Less costly than removable bundle designs
• Provides maximum amount of surface for a given shell and tube diameter
• Provides for single and multiple tube passes to ensure proper velocity
• May be interchangeable with other manufacturers of the same TEMA type limitations
Limitations
• Shell side can be cleaned only using chemical methods
• No provision to allow for differential thermal expansion ; an expansion joint on shell side must be used
Applications
• Oil coolers , liquid to liquid , vapor condensers , reboilers , gas coolers
• Generally , more viscous and warmer fluids flow through the shell
• Corrosive or high fouling fluids should flow inside the tubes
Removable bundle , externally sealed floating tubesheet - Type AEW , BEW This design allows for the removal , inspection and cleaning of the shell circuit and shell interior . A special floating tubesheet prevents intermixing of fluids . In most cases , a straight tube design is more economical than U-tube designs .
Advantages
• Floating tubesheet allows for differential thermal expansion between the shell and the tube bundle
• Shell circuit can be inspected and either steam- or mechanically cleaned
• The tube bundle can be repaired or replaced without disturbing the shell pipe
• Less costly than TEMA types BEP or BES which have an internal floating head
• Maximum surface for a given shell diameter for removable bundle design
• Tubes can be cleaned in AEW models without removing piping
Limitations
• Fluids in both the shell and tube circuits must be nonvolatile and non-toxic
• Tube side passes are limited to single or two-pass design
• All tubes are attached to two tubesheets . Tubes cannot expand independently , so large thermal shock applications should be avoided
• Packing materials produce limits on design pressure and temperature
Applications
• Intercoolers and aftercoolers , air inside the tubes
• Coolers with water inside the tubes
• Jacket water coolers or other high differential temperature duty
• Place hot side fluid through the shell with entry nearest the front end
Removable bundle , outside packed head - Type BEP , AEP This design allows for the easy removal , inspection , and cleaning of the shell circuit and shell interior without removing the floating head cover . A special floating tubesheet prevents intermixing of fluids . In most cases , a straight tube removable design is more costly than U-tube designs .
Advantages
• A floating tubesheet allows for differential thermal expansion between the shell and the tube bundle
• The shell circuit can be inspected and steam-cleaned . If the tube bundle has a square tube pitch , tubes can be mechanically cleaned by passing a brush between rows of tubes
• The tube bundle can be repaired or replaced without disturbing shell piping
• On AEP design , tubes can be serviced without disturbing tube-side piping
• Less costly than TEMA type BES or BET designs
• Only shell fluids are exposed to packing . Toxic or volatile fluids can be cooled in the tube-side circuit
• Provides large bundle entrance area , reducing the need for entrance domes for proper fluid distribution
07
02 17 06
25
02
25
11
20
18
19
18
13
09 04 15
08
05
20 24
1 . |
Shell |
2 . |
Shell cover |
3 . |
Shell flange channel end |
4 . |
Shell flange cover end |
5 . |
Shell nozzle |
6 . |
Floating tube sheet |
7 . |
Floating head cover |
8 . |
Floating head flange |
9 . |
Floating head backing device |
Heat exchanger types
21
Typical floating head
21 14 15 21
10 23 14 10
01
20
07 06
01
05
23
14
05
21 15 21
10 . |
Stationary tubesheet |
11 . |
Channel or stationary head |
12 . |
Channel cover |
13 . |
Channel nozzle |
14 . |
Tie rods and spacers |
15 . |
Tranverse baffles or support |
plates |
16 . |
Impingement baffle |
17 . |
Pass partition |
Typical kettle-type reboiler
Typical fixed tube sheet
18 . |
Vent connection |
19 . |
Drain connection |
20 . |
Instrument connection |
21 . |
Support saddles |
22 . |
Lifting lugs |
23 . |
Tubes |
24 . |
Weir |
25 . |
Liquid level connection |
Fig 2 : Parts identification in most common shell & tube exchanger types ( Source : Mihir ’ s Handbook of Chemical Process Engineering ).
