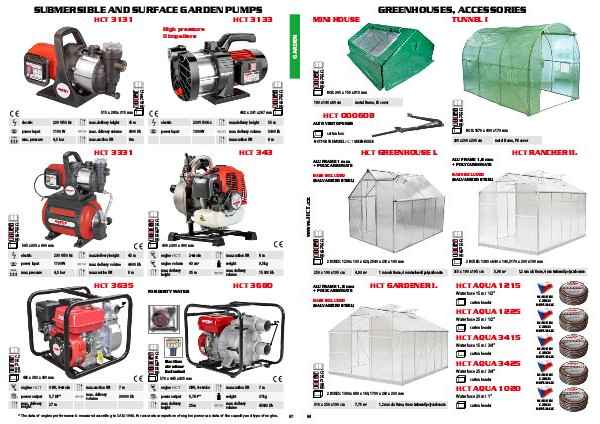

SUBMERSIBLE AND SURFACE GARDEN PUMPS
HCT 3131
HCT 3133
High pressure
5 impellers
CZ
SK
PL
GB
HU
CZ
SK
PL
GB
HU
515 x 285 x 315 mm
482 x 241 x 267 mm
electric 230 V/50 Hz max.delivery height 45 m electric 230 V/50 Hz max.delivery height 55 m
power input 1100 W max. delivery volume 4600 l/h power input 1300 W max. delivery volume 5400 l/h
max. pressure 4,5 bar max.suction lift 8 m max.suction lift 8 m
HCT 3331
HCT 343
CZ
SK
PL
GB
DE
HU
CZ
SK
PL
GB
HU
400 x 300 x 400 mm
565 x 330 x 660 mm
electric 230 V/50 Hz max.delivery height 45 m engine HCT 2-stroke max.suction lift 8 m
power input 1100 W max. delivery volume 4600 l/h engine volume 43 cm 3 weight 9,5 kg
max. pressure 4,5 bar max.suction lift 8 m max. delivery
height 35 m max. delivery
volume 15 000 l/h
HCT 3635
HCT 3680
FOR DIRTY WATER
2“
3“
CZ
SK
PL
GB
DE
HU
CZ
SK
PL
GB
HU
485 x 383 x 400 mm
engine HCT
Suction
strainer
included
570 x 445 x 435 mm
OHV, 4-stroke max.suction lift 7 m engine HCT OHV, 4-stroke max.suction lift 7 m
power output 5,7 HP* max. delivery
volume 30000 l/h power output 5,7 HP* weight 37 kg
max. delivery
height 27 m max. delivery
height 25 m max. delivery
volume 45000 l/h
* The data of engine performance is measured according to SAE J1940. For accurate comparison of engine power use data of the capacity and type of engine.
