Guia de Accesorios Devilbiss & Binks Accesorios Devilbiss & Binks | Page 79

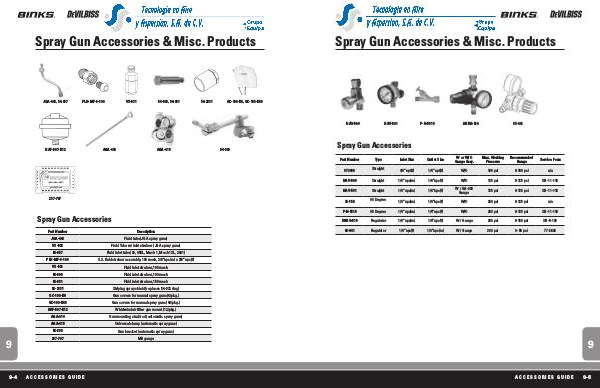

Spray Gun Accessories & Misc. Products
HAV-500
HAV-501
P-H-5516
HARG-510
85-441
Spray Gun Accessories
Part Number Type Inlet Size Outlet Size W or W/O
Gauge Assy. Max. Working
Pressure Recommended
Range Service Form
873409 Straight 1/4”npt(f) 1/4”npt(f) W/O 100 psi 0-100 psi n/a
HAV-500 Straight 1/4”nps(m) 1/4”nps(f) W/O 125 psi 0-125 psi SB-11-119
HAV-501 Straight 1/4”nps(m) 1/4”nps(f) W / GA-338
Gauge 125 psi 0-125 psi SB-11-119
73-159 90 Degree 1/4”nps(m) 1/4”nps(f) W/O 250 psi 0-125 psi n/a
P-H-5516 45 Degree 1/4”nps(m) 1/4”nps(f) W/O 250 psi 0-125 psi SB-11-119
HARG-510 Regulator 1/4”nps(m) 1/4”nps(f) W / Gauge 300 psi 0-160 psi SB-6-105
85-441 Regulator 1/4”nps(f) 1/4”nps(m) W / Gauge 300 psi 0-50 psi 77-2825
9
ACCESSORIES GUIDE
9-5
