Guia de Accesorios Devilbiss & Binks Accesorios Devilbiss & Binks | Page 71

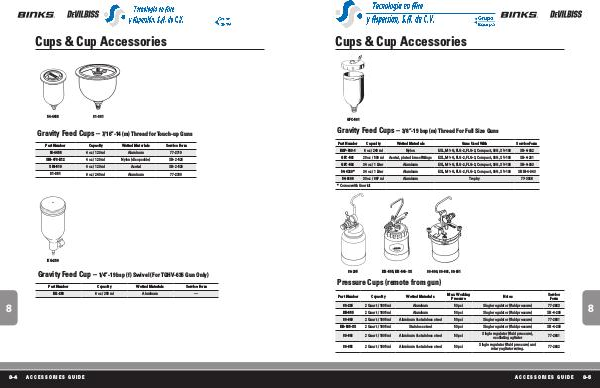

Cups & Cup Accessories
GFC-501
Gravity Feed Cups – 3/8”-19 bsp (m) Thread For Full Size Guns
Part Number Capacity Wetted Materials Guns Used With Service Form
KGP-509-1 8 oz / 240 ml Nylon EXL, M1-G, FLG-2, FLG-3, Compact, 95G, SV-100 SB-4-042
GFC-501 20 oz / 590 ml Acetal, plated brass fittings EXL, M1-G, FLG-2, FLG-3, Compact, 95G, SV-100 SB-4-261
GFC-502 34 oz / 1 Liter Aluminum EXL, M1-G, FLG-2, FLG-3, Compact, 95G, SV-100 SB-4-043
54-4720* 34 oz / 1 Liter Aluminum EXL, M1-G, FLG-2, FLG-3, Compact, 95G, SV-100 SBBI-4-043
54-6106 30 oz / 887 ml Aluminum Trophy 77-3028
* Comes with liner kit
80-295
KB-555, KB-545-SS
80-600, 80-601, 80-651
Pressure Cups (remote from gun)
Part Number Capacity Wetted Materials Max. Working
Pressure Notes Service
Form
80-295 2 Quart / 1895 ml Aluminum 50 psi Single regulator (fluid pressure) 77-2823
KB-555 2 Quart / 1895 ml Aluminum 50 psi Single regulator (fluid pressure) SB-4-205
80-600 2 Quart / 1895 ml Aluminum & stainless steel 50 psi Single regulator (fluid pressure) 77-2841
KB-545-SS 2 Quart / 1895 ml Stainless steel 50 psi Single regulator (fluid pressure) SB-4-205
80-601 2 Quart / 1895 ml Aluminum & stainless steel 50 psi Single regulator (fluid pressure),
oscillating agitator 77-2841
80-651 2 Quart / 1895 ml Aluminum & stainless steel 50 psi Single regulator (fluid pressure) and
rotary agitator w/reg. 77-2842
ACCESSORIES GUIDE
8
8-5
