Guia de Accesorios Devilbiss & Binks Accesorios Devilbiss & Binks | Page 69

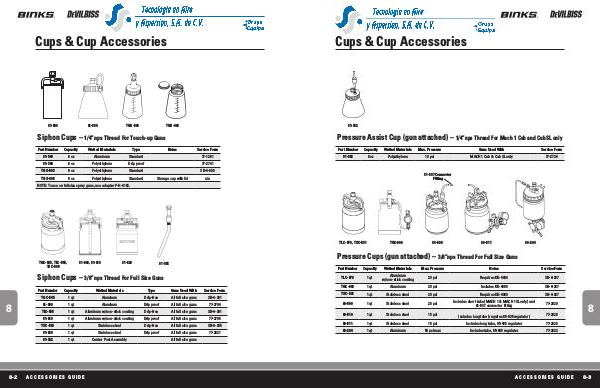

Cups & Cup Accessories
81-382
Pressure Assist Cup (gun attached) – 1/4”nps Thread For Mach 1 Cub and CubSL only
Part Number Capacity Wetted Materials Max. Pressure Guns Used With Service Form
81-382 8 oz Polyethylene 10 psi MACH 1 Cub & Cub SL only 77-2724
81-307 Connector
Fitting
TLC-576, TSC-591
TGC-600
80-500
80-511
80-294
Pressure Cups (gun attached) – 3/8”nps Thread For Full Size Guns
Part Number Capacity Wetted Materials Max. Pressure Notes Service Form
TLC-576 1 qt Aluminum
w/ non-stick coating 20 psi Requires KK-4980 SB-4-367
TGC-600 1 qt Aluminum 20 psi Includes KK-4980 SB-4-367
TSC-591 1 qt Stainless steel 20 psi Requires KK-4980 SB-4-367
80-500 1 qt Stainless steel 20 psi Includes short tube (MACH 1 & MACH 1SL only) and
81-507 connector fitting 77-2820
80-510 1 qt Stainless steel 15 psi Includes long tube (requires 85-435 regulator) 77-2820
80-511 1 qt Stainless steel 15 psi Includes long tube, 85-435 regulator 77-2820
80-294 1 qt Aluminum 50 psi max Includes tube, 85-445 regulator 77-2822
ACCESSORIES GUIDE
8
8-3
