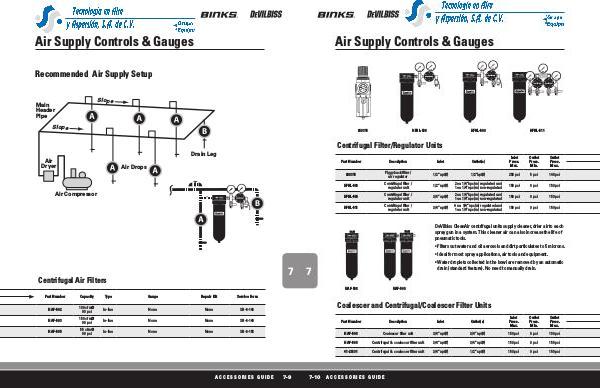

Air Supply Controls & Gauges
849315
HFRL-508
HFRL-509
HFRL-511
Centrifugal Filter/Regulator Units
Part Number Description Inlet Outlet(s) Inlet
Press.
Max. Outlet
Press.
Min. Outlet
Press.
Max.
849315 Piggyback filter /
air regulator 1/2”npt(f) 1/2”npt(f) 250 psi 5 psi 140 psi
HFRL-508 Centrifugal filter /
regulator unit 1/2”npt(f) 2 ea 1/4”nps(m) regulated and
1 ea 1/4”nps(m) non-regulated 150 psi 0 psi 150 psi
HFRL-509 Centrifugal filter /
regulator unit 3/4”npt(f) 2 ea 1/4”nps(m) regulated and
1 ea 1/4”nps(m) non-regulated 150 psi 0 psi 150 psi
HFRL-511 Centrifugal filter /
regulator unit 3/4”npt(f) 4 ea 1/4”nps(m) regulated and
1 ea 1/4”nps(m) non-regulated 150 psi 0 psi 150 psi
DeVilbiss CleanAir centrifugal units supply cleaner, drier air to each
spray gun in a system. This cleaner air can also increase the life of
pneumatic tools.
• Filters out water and oil aerosols and dirt particulates to 5 microns.
• Ideal for most spray applications, air tools and equipment.
• Water droplets collected in the bowl are removed by an automatic
drain (standard feature). No need to manually drain.
7
HAF-508
HAF-509
Coalescer and Centrifugal/Coalescer Filter Units
7-10
Part Number Description Inlet Outlet(s) Inlet
Press.
Max. Outlet
Press.
Min. Outlet
Press.
Max.
HAF-508 Coalescer filter unit 3/4”npt(f) 3/4”npt(f) 150 psi 0 psi 150 psi
HAF-509 Centrifugal & coalescer filter unit 3/4”npt(f) 3/4”npt(f) 150 psi 0 psi 150 psi
41-28191 Centrifugal & coalescer filter unit 3/4”npt(f) 1/2”npt(f) 150 psi 0 psi 150 psi
