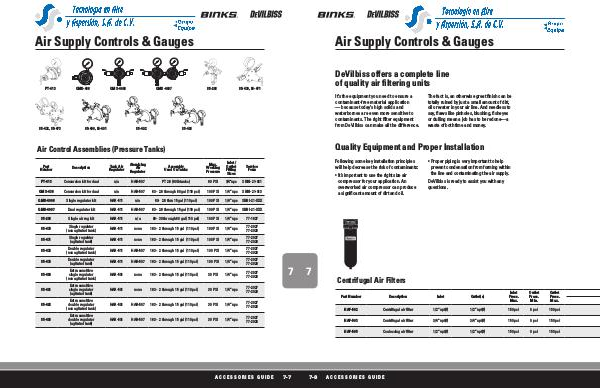

Air Supply Controls & Gauges
DeVilbiss offers a complete line
of quality air filtering units
It’s the equipment you need to ensure a
contaminant-free material application
— because today’s high solids and
waterbornes are even more sensitive to
contaminants. The right filter equipment
from DeVilbiss can make all the difference.
The fact is, an otherwise great finish can be
totally ruined by just a small amount of dirt,
oil or water in your air line. And needless to
say, flaws like pinholes, blushing, fisheyes
or dulling mean a job has to be redone—a
waste of both time and money.
Quality Equipment and Proper Installation
Following some key installation principles
will help decrease the risk of contaminants:
• It’s important to use the right size air
compressor for your application. An
overworked air compressor can produce
a significant amount of dirt and oil.
7
7-8
• Proper piping is very important to help
prevent condensation from forming within
the line and contaminating the air supply.
DeVilbiss is ready to assist you with any
questions.
Centrifugal Air Filters
Part Number Description Inlet Outlet(s) Inlet
Press.
Max. Outlet
Press.
Min. Outlet
Press.
Max.
HAF-502 Centrifugal air filter 1/2”npt(f) 1/2”npt(f) 150 psi 0 psi 150 psi
HAF-503 Centrifugal air filter 3/4”npt(f) 3/4”npt(f) 150 psi 0 psi 150 psi
HAF-505 Coalescing air filter 1/2”npt(f) 1/2”npt(f) 150 psi 0 psi 150 psi
ACCESSORIES GUIDE
