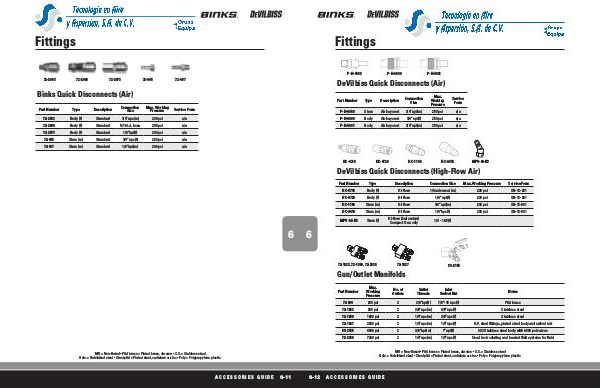

Fittings
P-H-4069
P-H-4090
P-H-4091
DeVilbiss Quick Disconnects (Air)
Part Number Type Description Connection
Size Max.
Working
Pressure Service
Form
P-H-4069 Stem Air bayonet 1/4”npt(m) 250 psi n/a
P-H-4090 Body Air bayonet 1/4”npt(f) 250 psi n/a
P-H-4091 Body Air bayonet 1/4”npt(m) 250 psi n/a
HC-4719
HC-1166
HC-4720
HC-4419
MPV-60-K3
DeVilbiss Quick Disconnects (High-Flow Air)
Part Number Type Description Connection Size Max. Working Pressure Service Form
HC-4719 Body (f) Hi-flow 1/4 universal (m) 230 psi SB-12-001
HC-4720 Body (f) Hi-flow 1/4”npt(f) 230 psi SB-12-001
HC-1166 Stem (m) Hi-flow 1/4”npt(m) 230 psi SB-12-001
HC-4419 Stem (m) Hi-flow 1/4”nps(f) 230 psi SB-12-001
MPV-60-K3 Stem (f) Hi-flow (ball swivel)
Compact Gun only 1/4 - 18.5(f)
6
72-1927
72-1823, 72-1869, 72-2339
83-2155
Gun/Outlet Manifolds
Part Number Max.
Working
Pressure No. of
Outlets Outlet
Threads Inlet
Swivel Nut Notes
72-994 200 psi 2 3/8”npt(f) 7/8”-18 nps(f) Pltd brass
72-1823 250 psi 2 3/8”nps(m) 3/8”nps(f) Stainless steel
72-1869 1000 psi 2 1/4”nps(m) 3/8”nps(f) Stainless steel
72-1927 2000 psi 2 1/4”nps(m) 1/4”nps(f) H.P. steel fittings, plated steel body and swivel nut
83-2155 4000 psi 2 3/8”npt(m) 1”npt(f) 303 Stainless steel body with 4000 psi valves
72-2339 7250 psi 2 1/4”nps(m) 1/4”nps(f) Used in circulating and heated fluid systems for fluid
N/R = Non-Rated • Pltd brass = Plated brass, chrome • S.S. = Stainless steel
Galv. = Galvinized steel • Steel pltd = Plated steel, cadmium or zinc • Poly = Polypropylene plastic
6-12
