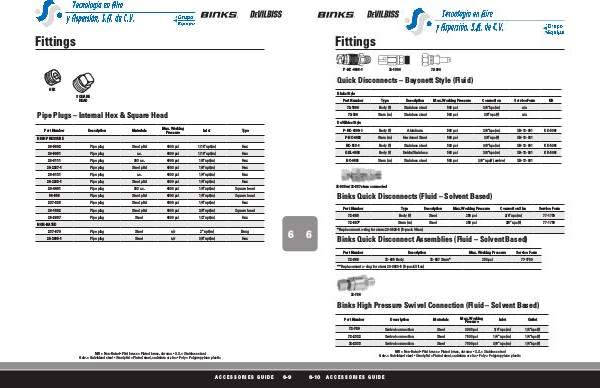

Fittings
P-HC-4808-1
72-1804
72-364
Quick Disconnects – Bayonett Style (Fluid)
Binks Style
Part Number Type Description Max. Working Pressure Connection Service Form
Kit
72-1804 Body (f) Stainless steel 500 psi 3/8”nps(m) n/a 72-364 Stem (m) Stainless steel 500 psi 3/8”nps(f) n/a P-HC-4808-1 Body (f) Aluminum 500 psi 3/8”nps(m) SB-12-001 P-HC-4482 Stem (m) Hardened Steel 500 psi 3/8”nps(f) SB-12-001 HC-513-1 Body (f) Stainless steel 500 psi 3/8”nps(m) SB-12-001 KK-5061
QDL-4808 Body (f) Delrin/Stainless 500 psi 3/8”nps(m) SB-12-001 KK-5061
HC-4691 Stem (m) Stainless steel 500 psi 3/8”nps(f) swivel SB-12-001
DeVilbiss Style
KK-5061
72-885 w/72-887 stem connected
Binks Quick Disconnects (Fluid – Solvent Based)
6
Part Number Type Description Max. Working Pressure Connection Size Service Form
72-885 Body (f) Steel 250 psi 3/8”nps(m) 77-1759
72-887* Stem (m) Steel 250 psi 3/8”nps(f) 77-1759
*Replacement o-ring for stem: 20-3620-5 (5-pack Viton)
Binks Quick Disconnect Assemblies (Fluid – Solvent Based)
Part Number
Description
72-885 Body
72-888
Max. Working Pressure Service Form
250 psi 77-1759
72-887 Stem*
**Replacement o-ring for stem: 20-3620-5 (5-pack Viton)
72-780
Binks High Pressure Swivel Connection (Fluid – Solvent Based)
Part Number Description Materials Max. Working
Pressure Inlet Outlet
72-780 Swivel connection Steel 3000 psi 1/4”nps(m) 1/4”nps(f)
72-2332 Swivel connection Steel 7500 psi 1/4” nps(m) 1/4”nps(f)
72-2333 Swivel connection Steel 7500 psi 3/8” nps(m) 1/4”nps(f)
N/R = Non-Rated • Pltd brass = Plated brass, chrome • S.S. = Stainless steel
Galv. = Galvinized steel • Steel pltd = Plated steel, cadmium or zinc • Poly = Polypropylene plastic
