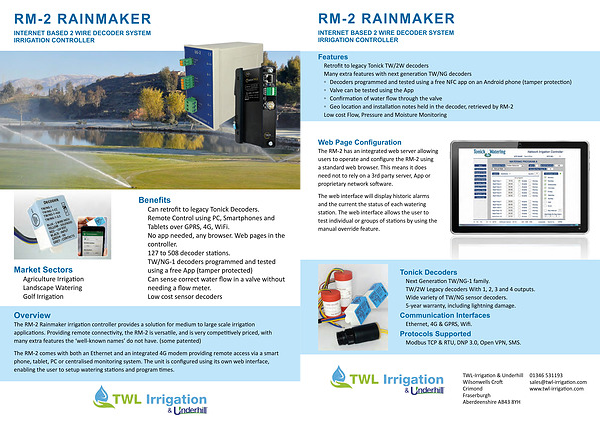

RM-2 RAINMAKER
INTERNET BASED 2 WIRE DECODER SYSTEM IRRIGATION CONTROLLER
Features
• Retrofit to legacy Tonick TW / 2W decoders
• Many extra features with next generation TW / NG decoders
◦ Decoders programmed and tested using a free NFC app on an Android phone ( tamper protection )
◦ Valve can be tested using the App
◦ Confirmation of water flow through the valve
◦ Geo location and installation notes held in the decoder , retrieved by RM-2
• Low cost Flow , Pressure and Moisture Monitoring
Web Page Configuration
The RM-2 has an integrated web server allowing users to operate and configure the RM-2 using a standard web browser . This means it does need not to rely on a 3rd party server , App or proprietary network software .
The web interface will display historic alarms and the current the status of each watering station . The web interface allows the user to test individual or groups of stations by using the manual override feature .
Tonick Decoders
• Next Generation TW / NG-1 family .
• TW / 2W Legacy decoders With 1 , 2 , 3 and 4 outputs .
• Wide variety of TW / NG sensor decoders .
• 5-year warranty , including lightning damage .
Communication Interfaces
• Ethernet , 4G & GPRS , Wifi .
Protocols Supported
• Modbus TCP & RTU , DNP 3.0 , Open VPN , SMS .
TWL-Irrigation & Underhill Wilsonwells Croft Crimond Fraserburgh Aberdeenshire AB43 8YH
01346 531193 sales @ twl-irrigation . com www . twl-irrigation . com
