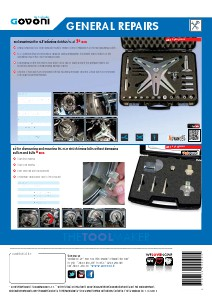

GENERAL REPAIRS
ART. 318010000
Tool assortment for self-adjusting clutches (SAC) 23 pcs
Using a special tool is an absolute must to ensure correct installation of the self-adjusting clutch
No counteracting forces must be applied during installation to prevent early rotation of the
adjusting ring in the clutch pressure plate
Depending on the flywheel’s hole pitch circle (six or eight screws) the pressure has to be
modified using the corresponding spindle carrier
Use the 3-hole pitch on flywheels with six mounting threads, and the 4-hole pitch for flywheels
with eight mounting threads
CONTENT:
Six different tapered bushings to spread both
white tensioning/centring elements (15-28 mm)
to support the clutch disc
Universal centring pin with guide and tensioning
element
Three screw-on centring pins of varying diameter
(12 mm, 14 mm, and 15 mm) for pilot bearing
Pressure piece and spindle carrier with 3- and
4-hole pitch
Spring tensioner for Mercedes Benz application
channel
Four studs M6, M7 and M8
Four knurled nuts
6
Locking
holes
Four special centring pins (BMW) of varying
diameter and corresponding screw
6/8
Locking
holes
Kit for dismounting and mounting the new stretch timing belts without damaging
pulleys and belts 8 pcs
High time saving
High cost saving
Easy and fast belt replacement
Universally applicable due to the long slot
CONTENT:
2 x Belt fitting tool
Ø 50, Ø 32
1 x Removing belt tool
Screw
M8x65 Ø 5,6 mm - L=32,5 mm
Screw
M8x65 Ø 5,6 mm - L=11,5 mm
Screw
M8x25 Ø 5,9 mm
Screw
M8x40 Ø 5,7 mm
Mounting
Dismounting
THETOOLMAKER
Distributed by:
GOVONI srl
Via degli Orsi, 97 | 40014 Loc. Beni Comunali | Crevalcore (BO) Italy |
Ph. line 1: +39.051.982 688 | Ph. line 2: +39.051.980 798
Fax +39.051.680 1371 | www.govoni.it
* All mentioned price excluding local V.A.T. – with release of this leaflet all previous mentioned promotion prices are not valid anymore.
Distribution and sales only in qualified stores. Printing mistakes, errors and technical alterations excepted. Prices valid up to 31.05.2015
Centering
ART. 313198000
