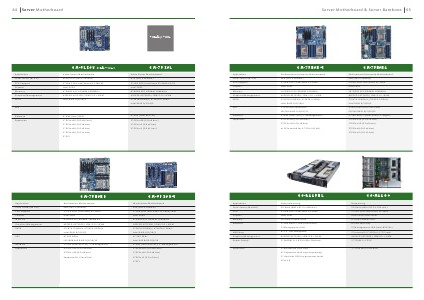

GIGABYTE Guidebook June. 2013 | Page 67

Server Motherboard & Server Barebone 65

GA-7PESH4
Application
Form Factor (W x H)
CPU Support
Chipset
Memory
Graphics/Management
SATA
SAS
Network
Expansion

Performance Enterprise Motherboard
EEB (305 x 330mm)
2*LGA 2011 Intel Xeon E5-2600
Intel C602
16*DDR3 ECC RDIMM 1600MHz
ASPEED AST2300 / IPMI 2.0 + iKVM
2*SATA III 6Gb/s, 4*SATA II 3Gb/s
Intel RAID 0/1/10/5
2*mini-SAS connector
LSI SAS RAID 0/1/10/1E
4*GbE (Intel i350), 1*Management
3*PCIe x16 (3.0 x16 bus)
2*PCIe x16 (3.0 x8 bus)
or PCIe switch for 4* PCIe 3.0 x16

GS-R22PHL
Application
Form Factor (WxHxD)
CPU
Chipset
Memory
Network
HDD Bays
Graphics/Management
Power Supply
Expansion

Supercomputing
2U Rack (800 x 87.5 x 448 mm)
2*LGA 2011 Intel Xeon E5-2600
Intel C602
16*DDR3 DIMM slots
2*10G BASE-T LAN (Intel X540)
1*Management LAN
8*2.5" hot-swappable
ASPEED AST2300 / IPMI2.0 + iKVM
2*1600W 1+1 R-PSU 80+ Platinum
2*Mezzanine card slots
4* Expansion card trays supporting
2* dual slot GPU/co-processor cards
PCIe 3.0

GA-7PESH2
Performance Enterprise Motherboard
EEB (305 x 330mm)
2*LGA 2011 Intel Xeon E5-2600
Intel C602
16*DDR3 ECC RDIMM 1600MHz
ASPEED AST2300 / IPMI 2.0 + iKVM
2*SATA III 6Gb/s, 4*SATA II 3Gb/s
Intel RAID 0/1/10/5
2*mini-SAS for 8*SAS 6Gbs
LSI SAS RAID 0/1/10/1E
2*10G BASE-T(Intel X540), 1*Mgmt.
1*PCIe x16 (3.0 x16 bus)
1*PCIe x16 (3.0 x8 bus)
2*PCIe x8 (3.0 x4 bus)
1*PCIe x4 (2.0 x1 bus)

GS-A22C0
Networking
2U Rack (440 x 87.5 x 550 mm)
2*LGA 2011 Intel Xeon E5-2600
Intel Cave Creel Series
8*DDR3 DIMM slots
8*LAN card tray
2*Management LAN (Intel 82574L)
2*Internal 3.5" SATA II, 1*CF card
ASPEED AST2300 / IPMI2.0 + iKVM
2*750W 1+1 PSU
1* PCIe x8 (3.0 x8 bus)
