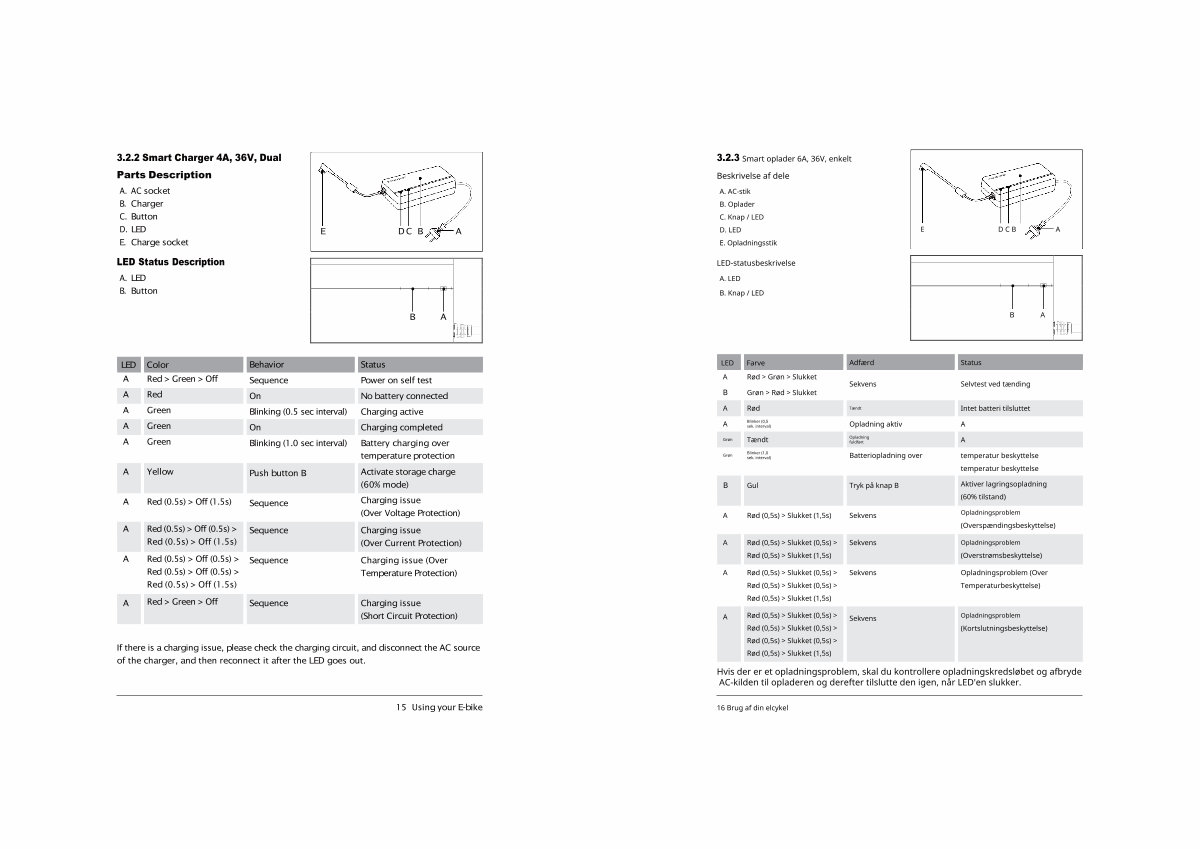

3.2.2 Smart Charger 4A, 36V, Dual Parts Description
A. AC socket B. Charger C. Button D. LED E. Charge socket
E D C B A
LED Status Description
A. LED B. Button
B A
LED Color Behavior Status A Red > Green > Off Sequence Power on self test A Red On No battery connected A Green Blinking( 0.5 sec interval) Charging active A Green On Charging completed A Green Blinking( 1.0 sec interval) Battery charging over temperature protection
A Yellow Push button B Activate storage charge( 60 % mode)
A |
Red( 0.5s) > Off( 1.5s) |
Sequence |
Charging issue |
|
|
|
( Over Voltage Protection) |
A Red( 0.5s) > Off( 0.5s) > Red( 0.5s) > Off( 1.5s)
A Red( 0.5s) > Off( 0.5s) > Red( 0.5s) > Off( 0.5s) > Red( 0.5s) > Off( 1.5s)
Sequence
Sequence
Charging issue( Over Current Protection)
Charging issue( Over Temperature Protection)
A Red > Green > Off Sequence Charging issue( Short Circuit Protection)
If there is a charging issue, please check the charging circuit, and disconnect the AC source of the charger, and then reconnect it after the LED goes out.
15 Using your E-bike
