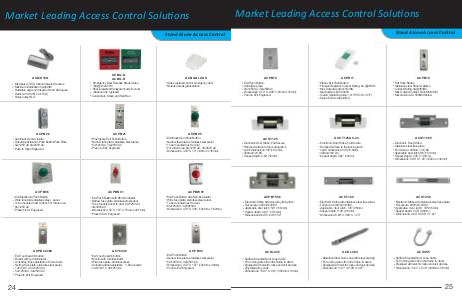

Market Leading Access Control Solutions
Stand Alone Access Control
ACPB76
Exit Push Button. Wide face plate 5A / 125VAC, 3A / 250VAC Dimensions: 4.72” X 2.99”( 120mm x 76mm). Push to Exit Engraved.
ACPB11
Plastic Exit Push Button Fireproof Material, Current Rating: 3A @ 36VDC Max Output Contact: NC \ NO Mechanical Life: 50 0000 Tested Operating temp: 10 ~+ 55 ° C( 14-131F) Green Exit words printed.
ACPB16
Exit Push Button Stainless steel Panel & Button Current Rating: 3A @ 36VDC Max Output Contact: NC / COM / COM Mechanical Life: 500000 tested.
ACST125
Electronic Door Strike, Fail Secure. Ramped surface to the locking latch Latch dimensions: 5 / 8”( 15.8mm). 400mA / 12V DC. Keeper depth: 0.62”( 16mm).
ACST125AC-24
Electronic Door Strike, Fail Secure. Ramped surface to the locking latch Latch dimensions: 5 / 8”( 15.8mm). 400mA / 12V DC. Keeper depth: 0.62”( 16mm).
ACST1505
Electronic Door Strike. Stainless steel face plate. Fail Secure: 400mA / 12V DC. Applicable door latch 5 / 8”( 15.8mm). Keeper Depth: 0.35”( 13.5mm). Dimensions: 5.86” X 1.25”( 149mm x 32mm)
ACPB1506
Electronic Strike with zinc alloy face plate. Fail secure: 400mA / 12VDC. Applicable door latch: 5 / 8”( 15.8mm). Keeper depth: 0.62”( 15.8mm). Dimensions: 4.84” X1.24” X1.50”
ACST160
Electronic Strike with stainless steel face plate. Fail secure: 400mA / 12VDC. Applicable door latch: 3 / 8”( 9.5mm). Keeper depth: 0.38”( 9.6mm). Dimensions: 6.29” X 0.98” X 1.23”
ACST250
Electronic Strike with stainless steel face plate. Fail secure: 400mA / 12VDC. Applicable door latch: 3 / 8”( 9.5mm). Keeper depth: 0.38”( 9.6mm). Dimensions: 9.84” X 0.98” X 1.22”
ACDL045
Surface Mounted Door Loop Cable For running wires from the frame to doors Equipped with electric locks and exit devices Zn-plated alloy ends Dimensions: 15.47” X 0.51”( 393mm x 13mm)
ACDL260
Stainless Steel Door Loop with steel housing For running wires from the frame to doors Equipped with electric locks and exit devices Dimensions: 11.41” X 0.98” X 0.47”
ACSS95
Surface Mounted Door Loop Cable For running wires from the frame to doors Equipped with electric locks and exit devices Dimensions: 11.81” x 0.38”( 300mm x 9.8mm)
25
