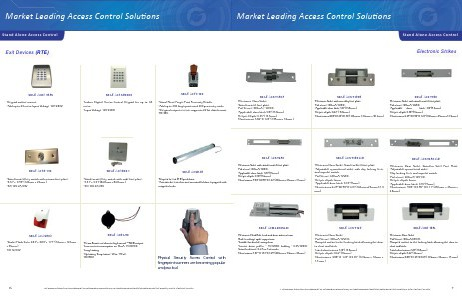

Market Leading Access Control Solutions
Market Leading Access Control Solutions
Stand Alone Access Control
Stand Alone Access Control
Electronic Strikes
Exit Devices (RTE)
SKU# ACKP165S
-Keypad surface mount.
-Add up to 64 users. Input Voltage 12V-24DV.
SKU# ACPX60000
-Indoor Digital Access Control Keypad for up to 64
users.
-Input Voltage 12V-24DV.
SKU# ACFC100
-Stand-Alone Finger Print Proximity Reader.
-Add up to 200 fingerprints and 200 proximity cards.
-Wiegand output receiver supports 26-bit data format.
-RS-485.
SKU# ACST1505
-Electronic Door Strike.
-Stainless steel face plate.
-Fail Secure: 400mA / 12V DC.
-Applicable door latch 5/8”(15.8mm).
-Keeper Depth: 0.35” (13.5mm).
-Dimensions: 5.86” X 1.25” (149mm x 32mm)
SKU# ACST250
SKU# ACPB11K
-Stainless steel key switch with narrow face place.
-4.72” x 0.94” (120mm x 24mm).
-4A/12V, 2A/24V
SKU# ACPBKS1
-Stainless steel key switch with wide face place.
-3.41” x 3.41” (86.8mm x 86.8mm).
-4A/12V, 2A/24V
SKU# ACSB36
-Request-to-exit (RTE) push bars.
-Activates the exit of an access controlled door equipped with
magnetic locks .
-Electronic Strike with stainless steel face plate.
-Fail secure: 400mA/12VDC.
-Applicable door latch: 3/8”(9.5mm).
-Keeper depth: 0.38”(9.6mm).
-Dimensions: 9.84”X 0.98”X 1.22”(250mm x 25mm x 31mm).
SKU# ACML200SLD
SKU# ACAS603
-Strobe Flash Siren 2.83” x 4.84” x 1.77” (72mm x 123mm
x 45mm)
-DC12/24V
6
SKU# ACBU10
-Piezzo Buzzer, medium to high sound = 96DB output.
-Low current consumption on 10mA, 1.5-20V DC.
-Long Lasting.
-Operating Temperature -20 to +70 oC.
-ISO 9001
-Electronic Dead Bolt. Lock and door status sensor
-Built-in voltage spike suppressor.
-Suitable for double swing door.
-Current draw: pull-in - 1A/12VDC holding - 0.3A/12VDC
Autorelock timer: 0, 2.5, or 5 seconds.
-Dimensions: 7.87”X 1.33”X 1.69”(200mm x 34mm x 43mm)
Physical Security Access Control with
fingerprint scanners are becoming popular
and practical.
The brands mentioned in this catalog are for identification purposes only. All trademarks and registered trademarks are the property of their respective owners.
SKU# ACST1506
-Electronic Strike with zinc alloy face plate.
-Fail secure: 400mA/12VDC.
-Applicable door latch: 5/8”(15.8mm).
-Keeper depth: 0.62” (15.8mm).
-Dimensions:4.84”X1.24”X1.50”(123mmx 31.6mm x 38.1mm)
SKU# ACST160JAB
-Electronic Door Strike. Stainless Steel face plate.
-Adjustable symmetrical strike with day locking lever
and impulse switch.
-Fail Secure. 600mA/12VDC.
-Keeper depth: 6mm.
-Applicable door latch: 0.35” (9mm).
-Dimensions:6.29”X0.98”X1.23”(160mmx25mmx31.4
mm).
SKU# ACST125
-Electronic Door Strike
-Fail Secure: 400mA/12V DC.
-Ramped surface to the locking latch allowing the door
to close and latch.
-Latch dimensions: 5/8”(15.8mm).
-Keeper depth: 0.62” (16mm).
-Dimensions: 4.88” X 1.25” X 0.05” (124mm x 32mm x
1.5 mm)
SKU# ACST160
-Electronic Strike with stainless steel face plate.
-Fail secure: 400mA/12VDC.
-Applicable door
latch: 3/8”(9.5mm).
-Keeper depth: 0.38”(9.6mm).
-Dimensions: 6.29”X 0.98”X 1.23”(160mm x 25mm x31.4mm).
SKU# ACST250JAB
-Electronic Door Strike. Stainless Steel Face Plate.
-Adjustable symmetrical strike.
-Day locking lever and impulse switch.
-Fail secure: 600mA/12V- DC.
-Keeper depth: 6mm.
-Applicable door latch: 0.35” (9mm).
-Dimensions: 9.84” X 0.98” X 0.11” (250mm x 25mm x
2.8mm).
SKU# ACKP165L
-Electronic Door Strike
-Fail Secure: 400mA/24V AC.
-Ramped surface to the locking latch allowing the door to
close and latch.
-Latch dimensions: 5/8”(15.8mm).
-Keeper depth: 0.62”(16mm).
-Dimensions: 4.88”X 1.25”X 0.05”(124mm x 32mm x 1.5 mm)
The brands mentioned in this catalog are for identification purposes only. All trademarks and registered trademarks are the property of their respective owners.
7
