Dr. Michael Back & Dr. Oliver Blume (Munich, Germany)
“Geistlich Biomaterials are innovative
materials and products and have many years
of experience.”

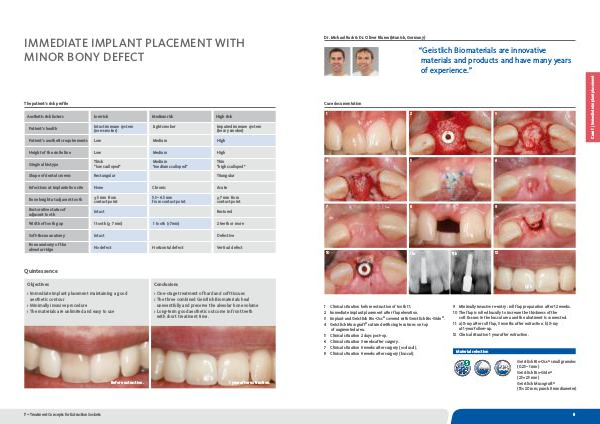

Case documentation
1 2 3
4 5 6
7 8 9
10 11 a
1
2
3
4
5
6
7
8
Clinical situation before extraction of tooth 11.
Immediate implant placement after flap elevation.
Implant and Geistlich Bio-Oss ® covered with Geistlich Bio-Gide ® .
G eistlich Mucograft ® sutured with single sutures on top
of augmented area.
Clinical situation 2 days post-op.
Clinical situation 3 weeks after surgery.
Clinical situation 6 weeks after surgery (occlusal).
Clinical situation 6 weeks after surgery (buccal).
11 b
12
9 Minimally invasive re-entry: roll flap preparation after 12 weeks.
10 T he flap is rolled bucally to increase the thickness of the
soft tissues in the buccal area and the abutment is connected.
11 a) X-ray after roll flap, 3 months after extraction. b) X-ray
at 1-year follow-up.
12 Clinical situation 1 year after extraction.
Material selection
Geistlich Bio-Oss ® small granules
(0.25–1 mm)
Geistlich Bio-Gide ®
(25 × 25 mm)
Geistlich Mucograft ®
(15 × 20 mm; punch 8 mm diameter)
8
