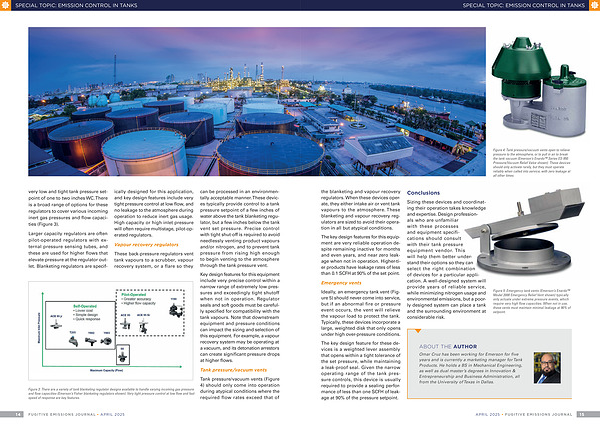

SPECIAL TOPIC: EMISSION CONTROL IN TANKS
Figure 4: Tank pressure / vacuum vents open to relieve pressure to the atmosphere, or to pull in air to break the tank vacuum( Emerson’ s Enardo™ Series ES-950 Pressure / Vacuum Relief Valve shown). These devices should only activate rarely, but they must operate reliably when called into service, with zero leakage at all other times.
the blanketing and vapour recovery regulators. When these devices operate, they either intake air or vent tank vapours to the atmosphere. These blanketing and vapour recovery regulators are sized to avoid their operation in all but atypical conditions.
The key design features for this equipment are very reliable operation despite remaining inactive for months and even years, and near zero leakage when not in operation. Higher-tier products have leakage rates of less than 0.1 SCFH at 90 % of the set point.
Emergency vents
Ideally, an emergency tank vent( Figure 5) should never come into service, but if an abnormal fire or pressure event occurs, the vent will relieve the vapour load to protect the tank. Typically, these devices incorporate a large, weighted disk that only opens under high over-pressure conditions.
Conclusions
Sizing these devices and coordinating their operation takes knowledge and expertise. Design professionals who are unfamiliar with these processes and equipment specifications should consult with their tank pressure equipment vendor. This will help them better understand their options so they can select the right combination of devices for a particular application. A well-designed system will provide years of reliable service, while minimizing nitrogen usage and environmental emissions, but a poorly designed system can place a tank and the surrounding environment at considerable risk.
Figure 5: Emergency tank vents( Emerson’ s Enardo™ Model 2000 Emergency Relief Vent shown) typically only actuate under extreme pressure events, which require very high flow capacities. When not in use, these vents must maintain minimal leakage at 90 % of setpoint.
The key design feature for these devices is a weighted lever assembly that opens within a tight tolerance of the set pressure, while maintaining a leak-proof seal. Given the narrow operating range of the tank pressure controls, this device is usually required to provide a sealing performance of less than one SCFH of leakage at 90 % of the pressure setpoint.
ABOUT THE AUTHOR
Omar Cruz has been working for Emerson for five years and is currently a marketing manager for Tank Products. He holds a BS in Mechanical Engineering, as well as dual master’ s degrees in Innovation & Entrepreneurship and Business Administration, all from the University of Texas in Dallas.
