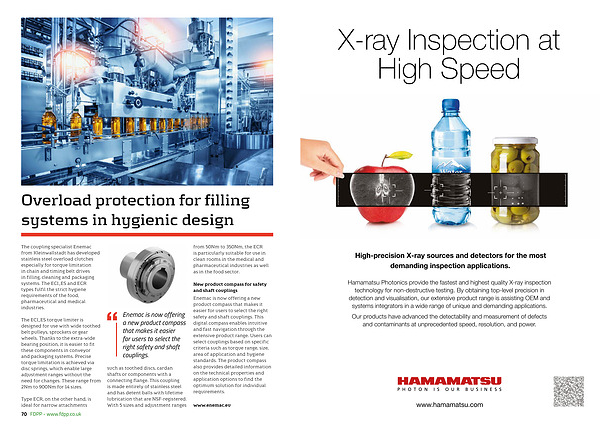

Overload protection for filling systems in hygienic design
The coupling specialist Enemac from Kleinwallstadt has developed stainless steel overload clutches especially for torque limitation in chain and timing belt drives in filling , cleaning and packaging systems . The ECI _ ES and ECR types fulfil the strict hygiene requirements of the food , pharmaceutical and medical industries .
The ECI _ ES torque limiter is designed for use with wide toothed belt pulleys , sprockets or gear wheels . Thanks to the extra-wide bearing position , it is easier to fit these components in conveyor and packaging systems . Precise torque limitation is achieved via disc springs , which enable large adjustment ranges without the need for changes . These range from 2Nm to 900Nm for 14 sizes .
Type ECR , on the other hand , is ideal for narrow attachments
70 FDPP - www . fdpp . co . uk
Enemac is now offering a new product compass that makes it easier for users to select the right safety and shaft couplings .
such as toothed discs , cardan shafts or components with a connecting flange . This coupling is made entirely of stainless steel and has detent balls with lifetime lubrication that are NSF-registered . With 5 sizes and adjustment ranges from 50Nm to 350Nm , the ECR is particularly suitable for use in clean rooms in the medical and pharmaceutical industries as well as in the food sector .
New product compass for safety and shaft couplings
Enemac is now offering a new product compass that makes it easier for users to select the right safety and shaft couplings . This digital compass enables intuitive and fast navigation through the extensive product range . Users can select couplings based on specific criteria such as torque range , size , area of application and hygiene standards . The product compass also provides detailed information on the technical properties and application options to find the optimum solution for individual requirements .
www . enemac . eu
