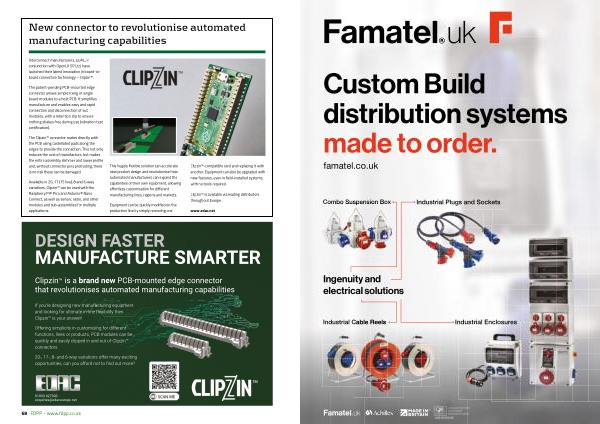

New connector to revolutionise automated manufacturing capabilities
Interconnect manufacturers , EDAC , in conjunction with OpenLX SP Ltd , have launched their latest innovation in board-toboard connection technology – Clipzin™ .
The patent-pending PCB-mounted edge connector allows simple fixing of single board modules to a host PCB . It simplifies manufacture and enables easy and rapid connection and disconnection of sub modules , with a retention clip to ensure nothing shakes free during use ( vibration test certification ).
The Clipzin™ connector mates directly with the PCB using castellated pads along the edges to provide the connection . This not only reduces the cost of manufacture , but makes the entire assembly slimmer and lower profile and , without connector pins protruding , there is no risk these can be damaged .
Available in 20 , 17 ( 15 live ), 8 and 6-way variations , Clipzin™ can be used with the Raspberry Pi ® Pico and Arduino ® Nano Connect , as well as sensor , radio , and other modules and sub-assemblies for multiple applications .
This hugely flexible solution can accelerate new product design and revolutionise how automated manufacturers can expand the capabilities of their own equipment , allowing effortless customisation for different manufacturing lines , regions and markets .
Equipment can be quickly modified on the production line by simply removing one
Clipzin™-compatible card and replacing it with another . Equipment can also be upgraded with new features , even in field-installed systems , with no tools required .
Clipzin™ is available via leading distributors throughout Europe .
www . edac . net
