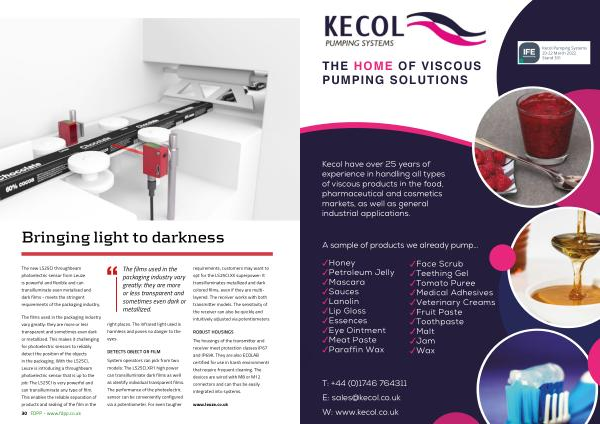

Bringing light to darkness
The new LS25CI throughbeam photoelectric sensor from Leuze is powerful and flexible and can transilluminate even metalised and dark films - meets the stringent requirements of the packaging industry .
The films used in the packaging industry vary greatly : they are more or less transparent and sometimes even dark or metallized . This makes it challenging for photoelectric sensors to reliably detect the position of the objects in the packaging . With the LS25CI , Leuze is introducing a throughbeam photoelectric sensor that is up to the job : The LS25CI is very powerful and can transilluminate any type of film . This enables the reliable separation of products and sealing of the film in the 30 FDPP - www . fdpp . co . uk right places . The infrared light used is harmless and poses no danger to the eyes .
The films used in the packaging industry vary greatly : they are more or less transparent and sometimes even dark or metallized .
DETECTS OBJECT OR FILM
System operators can pick from two models : The LS25CI . XR1 high power can transilluminate dark films as well as identify individual transparent films . The performance of the photoelectric sensor can be conveniently configured via a potentiometer . For even tougher requirements , customers may want to opt for the LS25CI . XX superpower : It transilluminates metallized and dark colored films , even if they are multilayered . The receiver works with both transmitter models . The sensitivity of the receiver can also be quickly and intuitively adjusted via potentiometers .
ROBUST HOUSINGS
The housings of the transmitter and receiver meet protection classes IP67 and IP69K . They are also ECOLAB certified for use in harsh environments that require frequent cleaning . The devices are wired with M8 or M12 connectors and can thus be easily integrated into systems .
www . leuze . co . uk
