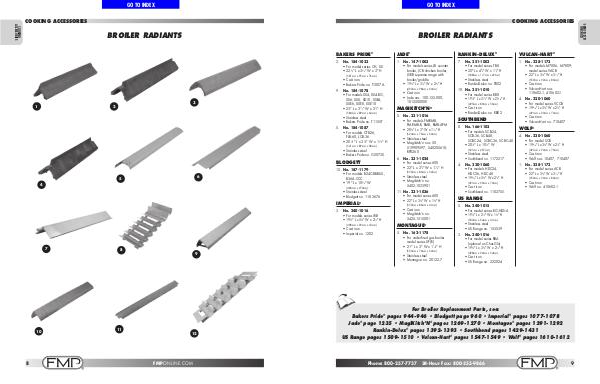

Broiler Radiants
Bakers Pride ® JADE ® RANKIN-DELUX ® Vulcan-Hart ®
2. No. 184-1023
• For model series CH, XX
• 22 7 ⁄ 8 " L x 3 3 ⁄ 4 " W x 3" H 1. No. 147-1003
• For models series JB counter
broiler, JCB chicken broiler,
JSRB supreme range with
broiler/griddle
• 19 3 ⁄ 8 " L x 3 7 ⁄ 8 " W x 2 3 ⁄ 8 " H 7. No. 251-1003
• For model series TB8
• 20" L x 4 5 ⁄ 8 " W x 1 1 ⁄ 8 " H 1. No. 228-1173
• For models M7806, M7809;
model series VACB
• 22" L x 3 5 ⁄ 8 " W x 3 1 ⁄ 4 " H
(581mm x 95mm x 76mm)
• Cast iron
• Bakers Pride no. T1007A
9. No. 184-1078
• For models XX4, XX4-BG,
XX6, XX8, XX10, XXE4,
XXE6, XXE8, XXE10
• 23" L x 3 1 ⁄ 2 " W x 2 1 ⁄ 2 " H
(584mm x 89mm x 64mm)
• Stainless steel
• Bakers Pride no. T1155T
5. No. 184-1087
• For models CTB-36,
FLB-60, LCB-36
• 20 1 ⁄ 2 " L x 3 1 ⁄ 2 " W x 1 1 ⁄ 2 " H
(521mm x 89mm x 38mm)
• Stainless steel
• Bakers Pride no. G5073X
Blodgett
12. No. 187-1179
• For models B24C-BBB-SU,
B36A-CCC
• 19" L x 10 5 ⁄ 8 " W
(483mm x 270mm)
(492mm x 98mm x 60mm)
• Cast iron
• Jade nos. 100-125-000,
1012500000
MAGIKITCH’N ®
5. No. 231-1016
• For models FM-RMB,
FM-RMB-R, RMB, RMB-APM
• 20 5 ⁄ 8 " L x 3" W x 1 1 ⁄ 4 " H
(524mm x 76mm x 32mm)
• Stainless steel
• Magikitch’n nos. 50,
519909597, 540205618,
RP0260
6. No. 231-1024
• For model series 600
• 22" L x 3 3 ⁄ 8 " W x 1 1 ⁄ 4 " H
(559mm x 86mm x 32mm)
• Stainless steel
• Magikitch’n no.
5402-1033901
11. No. 231-1036
• For model series 600
• 22" L x 3 3 ⁄ 8 " W x 1 5 ⁄ 8 " H
• Stainless steel
• Blodgett no. 1183676
imperial ®
(559mm x 86mm x 41mm)
• Cast iron
• Magikitch’n no.
5425-1515001
3. No. 240-1016
• For models series IRB
• 19 5 ⁄ 8 " L x 3 5 ⁄ 8 " W x 2 1 ⁄ 8 " H
MONTAGUE
(498mm x 92mm x 54mm)
• Cast iron
• Imperial no. 1202
®
5. No. 162-1178
• For underfired gas broiler
model series uf(r)
• 21" L x 3" W x 1 1 ⁄ 4 " H
(533mm x 76mm x 32mm)
• Stainless steel
• Montague no. 20122-7
(508mm x 117mm x 29mm)
• Stainless steel
• Rankin-Delux no. TB02
10. No. 251-1010
• For model series RB8
• 19 1 ⁄ 2 " L x 3 1 ⁄ 2 " W x 2 3 ⁄ 16 " H
(495mm x 89mm x 56mm)
• Cast iron
• Rankin-Delux no. RB02
SOUTHBEND
8. No. 166-1103
• For models SCB-24,
SCB-36, SCB-48,
SCBC-24, SCBC-36, SCBC-48
• 20 1 ⁄ 2 " L x 10 1 ⁄ 2 " W
(521mm x 267mm)
• Stainless steel
• Southbend no. 1172217
4. No. 220-1060
• For models HDC24,
HDC36, HDC48
• 19 5 ⁄ 16 " L x 3 5 ⁄ 8 " W x 2 7 ⁄ 8 " H
(491mm x 92mm x 73mm)
• Cast iron
• Southbend no. 1182755
(559mm x 92mm x 83mm)
• Cast iron
• Vulcan-Hart nos.
110602-1, 410602-1
4. No. 220-1060
• For model series VCCB
• 19 5 ⁄ 16 " L x 3 5 ⁄ 8 " W x 2 7 ⁄ 8 " H
(491mm x 92mm x 73mm)
• Cast iron
• Vulcan-Hart no. 710407
Wolf ®
4. No. 220-1060
• For model SCB
• 19 5 ⁄ 16 " L x 3 5 ⁄ 8 " W x 2 7 ⁄ 8 " H
(491mm x 92mm x 73mm)
• Cast iron
• Wolf nos. 10407, 710407
1. No. 228-1173
• For model series ACB
• 22" L x 3 5 ⁄ 8 " W x 3 1 ⁄ 4 " H
(559mm x 92mm x 83mm)
• Cast iron
• Wolf no. 410602-1
US RangE
5. No. 240-1015
• For model series RG-HDS-A
• 19 3 ⁄ 4 " L x 2 1 ⁄ 2 " W x 1 5 ⁄ 8 " H
(502mm x 64mm x 41mm)
• Stainless steel
• US Range no. 153539
3. No. 240-1016
• For model series RBA
(optional on Char-Glo)
• 19 5 ⁄ 8 " L x 3 5 ⁄ 8 " W x 2 1 ⁄ 8 " H
(498mm x 92mm x 54mm)
• Cast iron
• US Range no. 222024
For Broiler Replacement Parts, see:
Bakers Pride pages 944-946 • Blodgett page 960 • Imperial ® pages 1077-1078
Jade ® page 1235 • MagiKitch’N ® pages 1269-1270 • Montague ® pages 1291-1292
Rankin-Delux ® pages 1392-1393 • Southbend pages 1429-1431
US Range pages 1509-1510 • Vulcan-Hart ® pages 1547-1549 • Wolf ® pages 1610-1612
®
