TIMErs & Thermometers

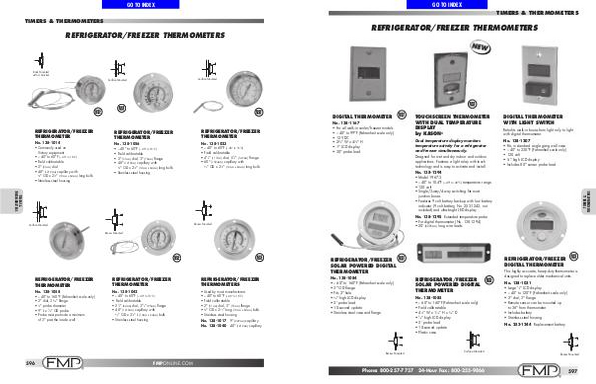

REFRIGERATOR/FREEZER THERMOMETERS
Back Mounted
with U bracket
©2011 Franklin Machine Products
Surface Mounted
Surface Mounted
©2011 Franklin Machine Products
©2011 Franklin Machine Products
Refrigerator/Freezer
Thermometer
No. 138-1014
• Commonly used on
Victory equipment
• – 40° to 60°F (– 40° to 16°C)
• Field calibratable
• 2" (51mm) dial
• 48" (1219mm) capillary with
3
⁄ 8 " OD x 2 1 ⁄ 2 " (10mm x 64mm) long bulb
• Stainless steel housing
Refrigerator/Freezer
Thermometer Refrigerator/Freezer
Thermometer
No. 138-1056
• – 40° to 60°F (– 40° to 16°C)
• Field calibratable
• 2" (51mm) dial, 3" (76mm) flange
• 48" (1219mm) capillary with
3
⁄ 8 " OD x 2 1 ⁄ 2 " (10mm x 64mm) long bulb
• Stainless steel housing No. 138-1023
• – 40° to 60°F (– 40° to 16°C)
• Field calibratable
• 4 5 ⁄ 8 " (117mm) dial, 5 7 ⁄ 8 " (149mm) flange
• 60" (1524mm) capillary with
3
⁄ 8 " OD x 2 1 ⁄ 2 " (10mm x 64mm) long bulb
Recess Mounted
©2011 Franklin Machine Products
Surface Mounted
©2011 Franklin Machine Products
Recess Mounted
©2011 Franklin Machine Products
Refrigerator/Freezer
Thermometer Refrigerator/Freezer
Thermometer Refrigerator/Freezer
Thermometers
No. 138-1058
• – 40° to 160°F (Fahrenheit scale only)
• 2" dial, 3 5 ⁄ 16 " flange
• 1 ⁄ 4 " probe diameter
• 9" L x 1 ⁄ 4 " OD probe
• Probe must protrude a minimum
of 3" past the inside wall No. 138-1042
• – 40° to 60°F (– 40° to 16°C)
• Field calibratable
• 2 1 ⁄ 2 " (64mm) dial, 3 3 ⁄ 4 " (95mm) flange
• 48" (1219mm) capillary with
3
⁄ 8 " OD x 2 1 ⁄ 2 " L (10mm x 64mm) bulb
• Stainless steel housing • Used by most manufacturers
• – 40° to 60°F (– 40° to 16°C)
• Field calibratable
• 2" (51mm) dial, 3" (76mm) flange
• 3 ⁄ 8 " OD x 2 1 ⁄ 2 " long (10mm x 64mm) bulb
• Stainless steel housing
596
fmponline.com
No. 138-1017
No. 138-1040
9" (229mm) capillary
48" (1219mm) capillary
