Cooking Accessories cooking accessories
FRANKLIN CHEF
1. No. 201-1047
• For model series GR, GRAX, GRC, GRM( serial no. 1035087 and after)
• A = 9 1 ⁄ 4 "( 235mm) B = 14 1 ⁄ 8 "( 359mm)
• Porcelain finish
GARLAND ®
2. No. 229-1001
• For model series G( before 6 / 1986)
• A = 9 1 ⁄ 4 "( 235mm) B = 11 "( 279mm)
• 10 1 ⁄ 2 "( 267mm) pin centers
• Porcelain finish
3. No. 229-1056
• For model series H and 6-burner 40 / 50
• A = 9 1 ⁄ 4 "( 235mm) B = 10 1 ⁄ 2 "( 267mm)
• Rough cast finish
4. No. 229-1023
• For model series 4-burner 40 / 50
• A = 9 1 ⁄ 2 "( 241mm) B = 11 "( 279mm)
• Rough cast finish
5. No. 229-1082
• For model series G280, GV280, R280( after 3 / 1992)( 2 pins on grate)
• A = 9 1 ⁄ 4 "( 235mm) B = 11 1 ⁄ 2 "( 292mm)
• 10 7 ⁄ 8 "( 276mm) pin centers
• Porcelain finish
5. No. 229-1091
• For model series G30A, G280( 6 / 1986 – 3 / 1992)( 1 pin on grate)
• A = 9 1 ⁄ 4 "( 235mm) B = 11 1 ⁄ 2 "( 292mm)
• Porcelain finish
IMPERIAL ®
6. No. 146-1011
• For model IHPA; Elite Range model series IR( 1995 and after)
• 11 7 ⁄ 8 " x 11 7 ⁄ 8 "( 302mm x 302mm)
• Rough cast finish
8. No. 147-1001
• For hot plate model series IHPA
• A = 8 3 ⁄ 4 "( 222mm)
• Rough cast finish
JADE ®
7. No. 147-1000
• For hot plate model series JSRE 3-4-36( rear), JSRE 4-3-36( front), JHPE( with 6 5 ⁄ 8 "( 168mm) hole size opening)
• A = 7 "( 178mm)
• Rough cast finish
8. No. 147-1001
• For hot plate model series IHPA, JSRE 3-3-36( front and rear), JSRE 4-3-36( front), JSRE 4-3-36( rear), JHPE( with 7 5 ⁄ 8 "( 194mm) hole size opening)
• A = 8 3 ⁄ 4 "( 222mm)
• Rough cast finish

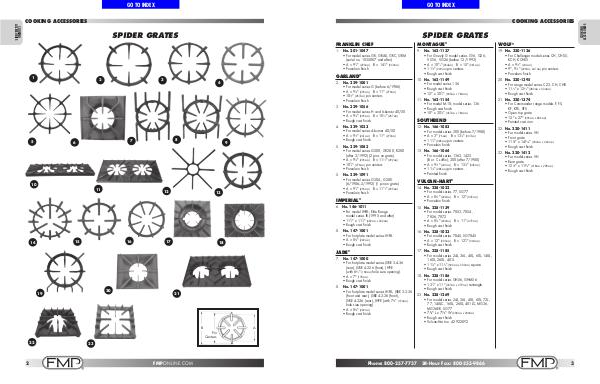

Spider Grates
MONTAGUE ®
9. No. 162-1137
• For Grizzly G model series G16, G26, VG16, VG26( before 12 / 1993)
• A = 10 3 ⁄ 8 "( 264mm) B = 15 "( 381mm)
• 11 1 ⁄ 2 "( 292mm) pin centers
• Rough cast finish
10. No. 162-1149
• For model series 136
• Rough cast finish
• 12 " x 30 7 ⁄ 8 "( 305mm x 784mm)
11. No. 162-1154
• For model M-18; model series 136
• Rough cast finish
• 18 " x 30 7 ⁄ 8 "( 457mm x 784mm)
Southbend
12. No. 166-1083
• For model series 300( before 7 / 1988)
• A = 3 "( 76mm) B = 13 1 ⁄ 4 "( 337mm)
• 11 1 ⁄ 4 "( 286mm) pin centers
• Porcelain finish
13. No. 166-1064
• For model series 1363, 1423( B or C suffix), 300( after 7 / 1988)
• A = 9 1 ⁄ 2 "( 241mm) B = 13 1 ⁄ 2 "( 343mm)
• 11 1 ⁄ 4 "( 286mm) pin centers
• Painted finish
VULCAN-HART ®
14. No. 228-1022
• For model series 77, SG77
• A = 8 3 ⁄ 4 "( 222mm) B = 12 "( 305mm)
• Porcelain finish
15. No. 228-1139
• For model series 7853, 7854, 7856, 7872
• A = 8 3 ⁄ 4 "( 222mm) B = 11 "( 279mm)
• Rough cast finish
16. No. 228-1023
• For model series 7845, SG7845
• A = 12 "( 305mm) B = 12 3 ⁄ 4 "( 324mm)
• Rough cast finish
17. No. 228-1185
• For model series 24L, 36L, 48L, 60L, 148L, 160L, 260L, 481L
• 11 7 ⁄ 8 " x 11 7 ⁄ 8 "( 302mm x 302mm) square
• Rough cast finish
18. No. 228-1186
• For model series GH56, GHM56
• 13 1 ⁄ 4 " x 11 "( 337mm x 279mm) rectangle
• Rough cast finish
23. No. 228-1269
• For model series 24L, 36L, 48L, 60L, 72L, 77, 148LC, 160L, 260L, 481LC, MG36, MG36ER, SG77
• 7 7 ⁄ 8 " L x 7 7 ⁄ 8 " W( 200mm x 200mm)
• Rough cast finish
• Vulcan-Hart no. 429228Y2
WOLF ®
19. No. 220-1126
• For Challenger model series CH, CHSS, KCH, KCHSS
• A = 9 1 ⁄ 2 "( 241mm)
• 9 ", 9 1 ⁄ 2 "( 229mm, 241mm) pin centers
• Porcelain finish
20. No. 220-1395
• For range model series C23, CH, CHR
• 11 1 ⁄ 8 " x 12 3 ⁄ 4 "( 283mm x 324mm)
• Rough cast finish
21. No. 220-1374
• For Commander range models F, FS, KF, KFS, XFS
• Open top grate
• 12 " x 27 "( 305mm x 686mm)
• Painted cast iron
22. No. 220-1411
• For model series VH
• Front grate
• 11 7 ⁄ 8 " x 14 3 ⁄ 16 "( 302mm x 360mm)
• Rough cast finish
22. No. 220-1412
• For model series VH
• Rear grate
• 12 1 ⁄ 2 " x 11 3 ⁄ 4 "( 318mm x 298mm)
• Rough cast finish
Phone: 800-257-7737 24-Hour Fax: 800-255-9866 3
