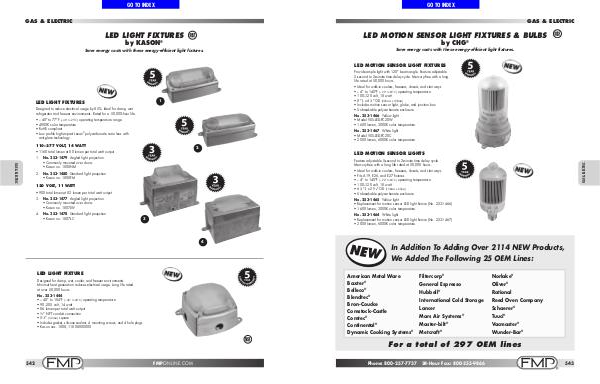

GAS & ELECTRIC
LED light fixtures
by KASON ®
Save energy costs with these energy-efficient light fixtures.
1
LED LIGHT FIXTURES
Designed to reduce electrical usage by 85%. Ideal for damp, wet
refrigerator and freezer environments. Rated for a 50,000-hour life.
• – 40° to 77°F (– 40° to 25°C) operating temperature range
• 4000K color temperature
• RoHS compliant
• Low profile high-impact Lexan ® polycarbonate resin lens with
anti-glare technology
110–277 VOLT, 14 WATT
2
• 1160 total lumen at 80 lumen per total watt output
1. No. 253-1479 Angled light projection
• Commonly mounted over doors
• Kason no. 1808NM
2. No. 253-1480 Standard light projection
• Kason no. 1808FM
120 VOLT, 11 WATT
• 900 total lumen at 82 lumen per t otal watt output
3. No. 253-1477 Angled light projection
• Commonly mounted over doors
• Kason no. 1807LW
4. No. 253-1478 Standard light projection
• Kason no. 1807LC
3
4
LED LIGHT FIXTURE
Designed for damp, wet, cooler, and freezer environments.
Minimal heat generation reduces electrical usage. Long life rated
at over 50,000 hours.
No. 253-1444
• – 40° to 104°F (– 40° to 40°C) operating temperature
• 90–305 volt, 14 watt
• 86 lumen per total watt output
• ½" NPT conduit connection
• 5 1 ⁄ 2 " (140mm) square
• Includes gasket, silicone sealant, 4 mounting screws, and 4 hole plugs
• Kason nos. 1808, 11808000000
542
fmponline.com
