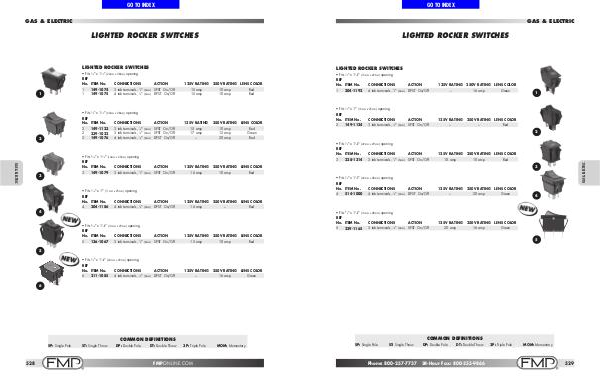

FMP-COMERSAMX CATALOGO FMP | Page 587

GAS & ELECTRIC
LIghted Rocker switches
Lighted Rocker Switches
• Fits 1 ⁄ 2 " x 1 1 ⁄ 8 " (13mm x 29mm) opening
REF
No. ITEM No.
CONNECTIONS
1
4 tab terminals, 1 ⁄ 4 "
204-1192 (6mm) ACTION
DPST On/Off 125V RATING
– 250V RATING LENS COLOR
16 amp
Green
• Fits 1 ⁄ 2 " x 1" (13mm x 25mm) opening
REF
No. ITEM No.
CONNECTIONS
2
3 tab terminals, 1 ⁄ 4 "
149-1124 (6mm) ACTION
SPST On/Off 125V RATING
– 250V RATING LENS COLOR
–
Red
1
2
(6mm)
ACTION
SPST On/Off
125V RATING
10 amp
250V RATING LENS COLOR
10 amp
Red
• Fits 7 ⁄ 8 " x 1 1 ⁄ 8 " (22mm x 29mm) opening
REF
No. ITEM No.
CONNECTIONS
3
3 tab terminals, 1 ⁄ 4 "
228 -1314
3
• Fits 7 ⁄ 8 " x 1 1 ⁄ 2 " (22mm x 38mm) opening
REF
No. ITEM No.
CONNECTIONS
4
4 tab terminals, 1 ⁄ 4 "
514-1000 (6mm) ACTION
DPST On/Off 125V RATING
– 250V RATING LENS COLOR
20 amp
Green
• Fits 3 ⁄ 8 " x 1 1 ⁄ 8 " (10mm x 28mm) opening
REF
No. ITEM No.
CONNECTIONS
5
3 tab terminals, 1 ⁄ 4 "
229-1165 (6mm) ACTION
SPST On/Off 125V RATING
20 amp 250V RATING LENS COLOR
16 amp
Green
4
5
Common Definitions
SP: Single Pole
ST: Single Throw
Phone: [phone]
DP: Double Pole
DT: Double Throw
24-Hour Fax: [phone]
3P: Triple Pole
MOM: Momentary
529
