GAS & ELECTRIC
rocker switches

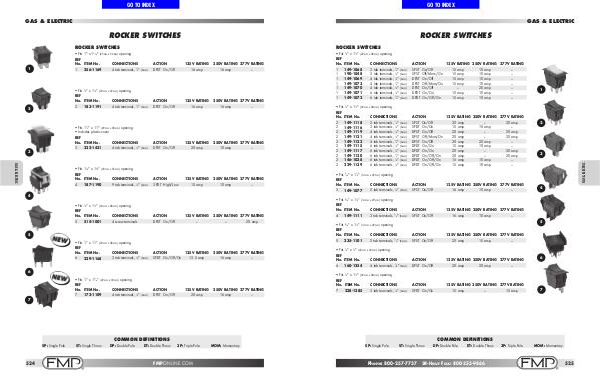

Rocker Switches
1
2
3
• Fits 1" x 1 3 ⁄ 16 " (25mm x 30mm) opening
REF
No. ITEM No.
CONNECTIONS
1
4 tab terminals, 1 ⁄ 4 "
256-1169 (6mm) ACTION
DPST On/Off 125V RATING
16 amp 250V RATING 277V RATING
16 amp
–
• Fits 7 ⁄ 8 " x 1 1 ⁄ 8 " (22mm x 29mm) opening
REF
No. ITEM No.
CONNECTIONS
2
4 tab terminals, 1 ⁄ 4 "
183-1191 (6mm) ACTION
DPST On/Off 125V RATING
16 amp 250V RATING 277V RATING
16 amp
–
• Fits 1 1 ⁄ 8 " x 1 1 ⁄ 2 " (29mm x 38mm) opening
• Includes plastic cover
REF
No. ITEM No.
CONNECTIONS
3
4 tab terminals, 1 ⁄ 4 "
222-1431 (6mm) ACTION
DPST On/Off 125V RATING
20 amp 250V RATING 277V RATING
10 amp
–
• Fits 1 1 ⁄ 8 " x 1 3 ⁄ 8 " (29mm x 35mm) opening
REF
No. ITEM No.
CONNECTIONS
4
9 tab terminals, 1 ⁄ 4 "
187-1190 (6mm) ACTION
3PDT High/Low 125V RATING
15 amp 250V RATING 277V RATING
10 amp
–
ACTION
DPST On/Off 125V RATING
– 250V RATING 277V RATING
–
20 amp
4
• Fits 7 ⁄ 8 " x 1 1 ⁄ 2 " (22mm x 38mm) opening
REF
No. ITEM No.
CONNECTIONS
5
4 screw terminals
514-1001
5
• Fits 7 ⁄ 8 " x 1 1 ⁄ 2 " (22mm x 38mm) opening
REF
No. ITEM No.
CONNECTIONS
6
3 tab terminals, 1 ⁄ 4 "
229-1168 (6mm) ACTION
125V RATING
SPDT On/Off/On
13.5 amp 250V RATING 277V RATING
16 amp
–
• Fits 7 ⁄ 8 " x 1 3 ⁄ 16 " (22mm x 30mm) opening
REF
No. ITEM No.
CONNECTIONS
7
4 tab terminals, 1 ⁄ 4 "
172-1109 (6mm) ACTION
DPST On/Off 250V RATING 277V RATING
16 amp
–
6
7
125V RATING
20 amp
Common Definitions
SP: Single Pole
524
ST: Single Throw
DP: Double Pole
DT: Double Throw
3P: Triple Pole
fmponline.com
MOM: Momentary
