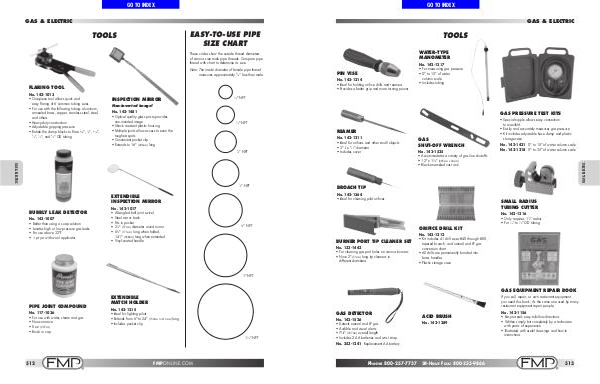

GAS & ELECTRIC
Easy-To-Use Pipe
Size Chart
Tools
These circles show the outside thread diameters
of various size male pipe threads. Compare pipe
thread with chart to determine its size.
Note: T he inside diameter of female pipe thread
measures approximately 3 ⁄ 16 " less than male.
Flaring Tool
No. 142-1013
• One-piece tool allows quick and
easy flaring of 6 common tubing sizes
• For use with the following tubing: aluminum,
annealed brass, copper, stainless steel, steel,
and others
• Heavy-duty construction
• Adjustable gripping pressure
• Rotate the clamp blocks to flare 3 ⁄ 16 ", 1 ⁄ 4 ", 5 ⁄ 16 ",
3
⁄ 8 ", 1 ⁄ 2 ", and 5 ⁄ 8 " OD tubing
inspection mirror
1
⁄ 8 "
NPT
Non-inverted image!
No. 142-1481
• Optical quality glass prism provides
non-inverted image
• Shock resistant plastic housing
• Multiple joints allow access to even the
toughest spots
• Convenient pocket clip
• Extends to 16" (406mm) long
1
⁄ 4 " NPT
⁄ 8 " NPT
3
1
⁄ 2 "
NPT
Extendible
Inspection Mirror
Bubbly Leak Detector
No. 143-1007
• Better than using a soap solution
• Locates high or low pressure gas leaks
• For use above 32°F
• 1 ⁄ 2 pt jar with wool applicator
No. 142-1017
• All-angled ball joint swivel
• Steel mirror back
• Fits in pocket
• 2 1 ⁄ 4 " (57mm) diameter round mirror
• 6 3 ⁄ 4 " (171mm) long when folded,
14 1 ⁄ 2 " (368mm) long when extended
• Vinyl-coated handle
3
⁄ 4 "
NPT
1" NPT
Pipe Joint Compound
No. 117-1036
• For use with water, steam and gas
• Non-corrosive
• 8 oz (237mL)
• Brush in cap
Extendible
Match Holder
No. 142-1215
• Ideal for lighting pilots
• Extends from 6" to 24" (152mm to 610mm) long
• Includes pocket clip
1 1 ⁄ 4 " NPT
