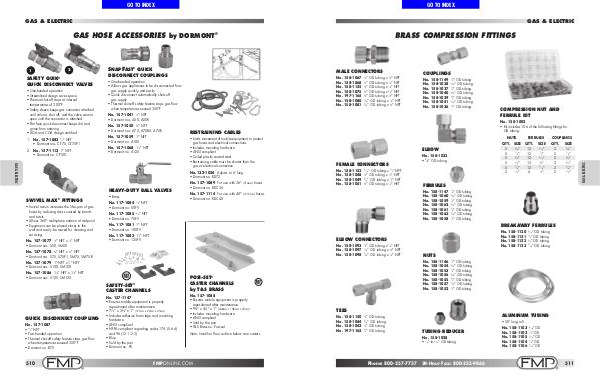

FMP-COMERSAMX CATALOGO FMP | Page 568

GAS & ELECTRIC
gas hose accessories by dormont ®
2
1
safety quik ®
Quick Disconnect Valves
• One-handed operation
• Streamlined design saves space
• Thermal shut-off stops at internal
temperatures of 300°F
• Safety sleeve keeps gas connector attached
until valve is shut off, and the valve cannot
open until the connector is attached
• Flat face quick disconnect keeps dirt and
grime from entering
• AGA and CGA design certified
1. No. 157-1083
NPT
• Dormont nos. CF75, CF75P1
3
⁄ 4 "
2. No. 157-1113 1" NPT
• Dormont no. CF100
s nap f ast ® Quick
Disconnect couplings
• One-handed operation
• Allows gas appliances to be disconnected from
gas supply quickly and easily
• Quick disconnect automatically shuts off
gas supply
• Thermal shut-off safety feature stops gas flow
when temperatures exceed 350°F
No. 157-1041 1 ⁄ 2 " NPT
• Dormont nos. A50, A50R
No. 157-1050 3 ⁄ 4 " NPT
• Dormont nos. A75, A75BX, A75R
No. 157-1059 1" NPT
• Dormont no. A100
Restraining Cables
• Limits movement of mobile equipment to protect
gas hoses and electrical connections
• Includes mounting hardware
• ANSI compliant
• Coiled plastic-coated steel
• Restraining cable must be shorter than the
gas or electrical connection
No. 157-1068 1 1 ⁄ 4 " NPT
• Dormont no. A125
No. 133-1024 Adjusts to 6' long
• Dormont no. RD72
HEAVY-DUTY BALL VALVES
Swivel max fittings
®
• Swivel action increases the life span of gas
hoses by reducing stress caused by bends
and twists
• Allows 360° multi-plane rotation at midpoint
• Equipment can be placed closer to the
wall and easily be moved for cleaning and
servicing
No. 157-1077 ⁄ 2 " NPT x ⁄ 2 " NPT
• Dormont nos. S50, SM50
1
1
• Brass
No. 117-1084 1 ⁄ 2 " NPT
• Dormont no. 50FV
No. 157-1089 For use with 36" (914mm) hoses
• Dormont no. RDC36
No. 157-1114 For use with 48"
• Dormont no. RDC48
(1219mm)
hoses
No. 117-1085 3 ⁄ 4 " NPT
• Dormont no. 75FV
No. 117-1081 1" NPT
• Dormont no. 100FV
No. 117-1083 1 1 ⁄ 4 " NPT
• Dormont no. 125FV
No. 157-1078 3 ⁄ 4 " NPT x 3 ⁄ 4 " NPT
• Dormont nos. S75, S75P1, SM75, SM75R
No. 157-1079 1" NPT x 1" NPT
• Dormont nos. S100, SM100
No. 157-1086 1 1 ⁄ 4 " NPT x 1 1 ⁄ 4 " NPT
• Dormont nos. S125, SM125
Posi-Set ®
Caster Channels
by T&S Brass
SAFETY-SET ®
CASTER CHANNELS
Quick Disconnect coupling
No. 157-1087
• 3 ⁄ 4 " NPT
• Two-handed operation
• Thermal shut-off safety feature stops gas flow
when temperatures exceed 350°F
• Dormont no. B75
510
No. 157-1147
• Ensures mobile equipment is properly
repositioned after maintenance
• 7 1 ⁄ 2 " x 3 5 ⁄ 8 " x 1" (191mm x 92mm x 25mm)
• Includes adhesive foam tape and mounting
hardware
• ANSI compliant
• NFPA compliant regarding codes 17A (5.6.4)
and 96 (12.1.2.3)
• Blue
• Sold by the pair
• Dormont no. PS
No. 157-1088
• Ensures mobile equipment is properly
repositioned after maintenance
• 9 3 ⁄ 4 " x 4 1 ⁄ 4 " x 1" (248mm x 108mm x 25mm)
• Includes mounting hardware
• ANSI compliant
• Sold by the pair
• T&S Brass no. Posi-set
Note: Install on floor surface below rear casters.
fmponline.com
