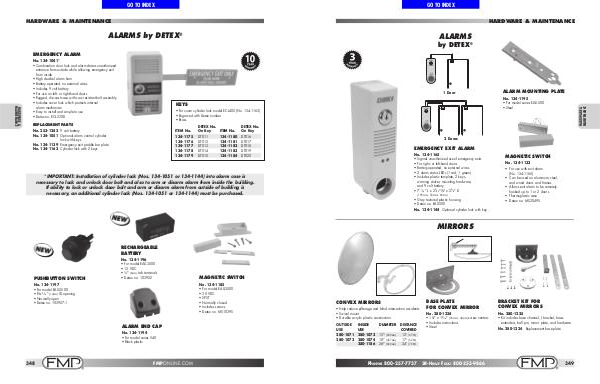

Hardware & Maintenance
alarms by detex ®
Emergency Alarm
No. 134-1041*
• Combination door lock and alarm deters unauthorized
entrance from outside while allowing emergency exit
from inside
• High decibel alarm horn
• Battery-operated, no external wires
• Includes 9 volt battery
• For use on left- or right-hand doors
• Rugged, die-cast case with saw resistant bolt assembly
• Includes cover lock which protects internal
alarm mechanism
• Easy to install and simple to use
• Detex no. ECL230D
KEYS
• For cover cylinder lock model ECL405 (No. 134-1163)
• Engraved with Detex number
• Brass
Replacement Parts
No. 253-1242
No. 134-1051
No. 134-1139
No. 134-1163
9 volt battery
Optional alarm control cylinder
lock with keys
Emergency exit paddle bar plate
Cylinder lock with 2 keys
ITEM No.
134-1175
134-1176
134-1177
134-1178
134-1179
DETEX No.
On Key
DT011
DT012
DT013
DT014
DT015
ITEM No.
134-1180
134-1181
134-1182
134-1183
134-1184
DETEX No.
On Key
DT016
DT017
DT018
DT019
DT020
*Important: Installation of cylinder lock (Nos. 134-1051 or 134-1144) into alarm case is
necessary to lock and unlock door bolt and also to arm or disarm alarm from inside the building.
If ability to lock or unlock door bolt and arm or disarm alarm from outside of building is
necessary, an additional cylinder lock (Nos. 134-1051 or 134-1144) must be purchased.
RECHARGEABLE
BATTERY
PUSHBUTTON SWITCH
No. 134-1196
• For model EAX-3500
• 12 VDC
• ¼" (6mm) tab terminals
• Detex no. 103952
No. 134-1185
• For model EAX-3500
• 30 VDC
• SPST
• Normally closed
• Includes screws
• Detex no. MS1039S
No. 134-1197
• For model EAX-3500
• Fits 9 ⁄ 16 " (14mm) ID opening
• Normally open
• Detex no. 103957-1
ALARM END CAP
No. 134-1194
• For model series V40
• Black plastic
348
MAGNETIC SWITCH
