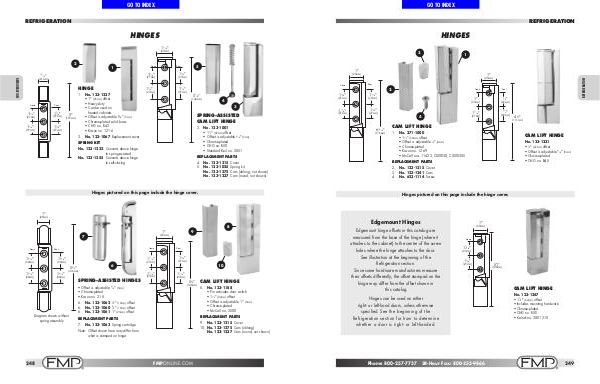

FMP-COMERSAMX CATALOGO FMP | Page 307

REFRIGERATION
HINGES
3
1
1"
1"
(25mm)
Door
2
1 ⁄ 16 "
(27mm)
1
Door
Frame
1 ⁄ 16 "
(27mm)
1
1"
(25mm)
1 1 ⁄ 16 "
(27mm)
Frame
(25mm)
1 1 ⁄ 16 "
(27mm)
6 15 ⁄ 16 "
(176mm)
1 1 ⁄ 16 "
(27mm)
4
7
⁄ 8 "
(22mm)
7
⁄ 8 "
(22mm)
4 3 ⁄ 8 "
(111mm)
cam lift hinge
1. No. 271-1000
• 1 1 ⁄ 4 " (32mm) offset
• Offset is adjustable 1 ⁄ 8 " (3mm)
• Chrome-plated
• Kason no. 1269
• McCall nos. 11423, CIX0030, CIX00305
Cam Lift Hinge
No. 123-1231
• 7 ⁄ 8 " (22mm) offset
• Offset is adjustable
• Chrome-plated
• CHG no. R45
Replacement Parts
3
⁄ 16 " (5mm)
2. No. 123-1215 Cover
3. No. 123-1241 Cam
4. No. 623-1114 Screw
Hinges pictured on this page include the hinge cover.
Edgemount Hinges
1"
Edgemount hinge offsets in this catalog are
measured from the base of the hinge (where it
attaches to the cabinet) to the center of the screw
holes where the h
