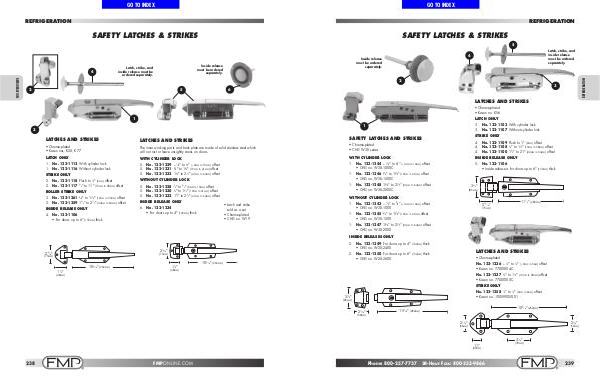

FMP-COMERSAMX CATALOGO FMP | Page 296

REFRIGERATION
Safety LATCHES & STRIKES
Inside release
must be ordered
separately.
Latch, strike, and
inside release must be
ordered separately.
4
2
6
5
1
3
Latches and Strikes Latches and Strikes
• Chrome-plated
• Kason nos. K58, K77 The inner working parts and back plate are made of solid stainless steel which
will not rust or leave unsightly stains on doors.
Latch Only With Cylinder Lock
1. No. 122-1113 With cylinder lock
1. No. 122-1116 Without cylinder lock 5. No. 122-1229 – 1 ⁄ 8 " to 3 ⁄ 8 " (– 3mm to 10mm) offset
5. No. 122-1231 3 ⁄ 4 " to 1 5 ⁄ 8 " (19mm to 41mm) offset
5. No. 122-1233 1 5 ⁄ 8 " to 2 1 ⁄ 2 " (41mm to 64mm) offset
Strike Only
2. No. 122-1118 Flush to 1 ⁄ 4 " (6mm) offset
2. No. 122-1117 3 ⁄ 4 " to 1 1 ⁄ 2 " (19mm to 38mm) offset
Roller Strike Only
3. No. 122-1261 3 ⁄ 4 " to 1 1 ⁄ 2 " (19mm to 35mm) offset
3. No. 122-1259 1 3 ⁄ 4 " to 2 1 ⁄ 2 " (44mm to 64mm) offset
(152mm)
Inside Release Only
(102mm)
• Latch and strike
sold as a set
• Chrome-plated
• CHG no. W19
thick
thick
2 15 ⁄ 16 "
(75mm)
2 15 ⁄ 16 "
(75mm)
1 7 ⁄ 8 "
(48mm)
238
5. No. 122-1228 1 ⁄ 8 " to 3 ⁄ 8 " (3mm to 10mm) offset
5. No. 122-1230 3 ⁄ 4 " to 1 5 ⁄ 8 " (19mm to 41mm) offset
5. No. 122-1232 1 5 ⁄ 8 " to 2 1 ⁄ 2 " (41mm to 64mm) offset
6. No. 122-1234
• For doors up to 4"
Inside Release Only
4. No. 122-1106
• For doors up to 6"
Without Cylinder Lock
10 5 ⁄ 16 "
(262mm)
1 7 ⁄ 8 "
(48mm)
fmponline.com
10 5 ⁄ 16 "
(262mm)
