REFRIGERATION

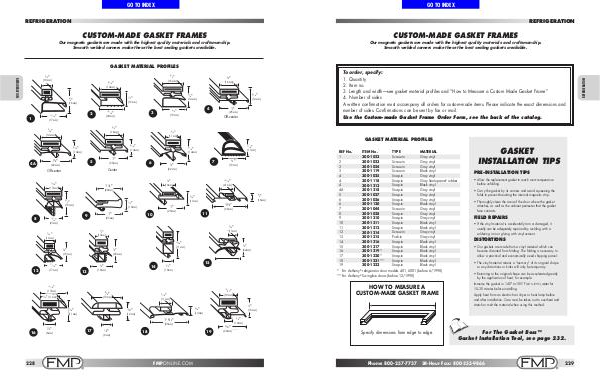

Custom-Made gasket Frames
Our magnetic gaskets are made with the highest quality materials and craftsmanship.
Smooth welded corners make these the best sealing gaskets available.
1. Quantity
2. Item no.
3. Length and width—see gasket material profiles and “How to Measure a Custom Made Gasket Frame”
4. Number of sides
A written confirmation must accompany all orders for custom-made items. Please indicate the exact dimensions and
number of sides. Confirmations can be sent by fax or mail.
Use the Custom-made Gasket Frame Order Form, see the back of the catalog.
Gasket Material Profiles
Ref no.
1
2
3
3
4
4
4
4A
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ITEM No.
300-1022
300-1023
300-1024
300-1119
300-1025
300-1118
300-1213
300-1218
300-1027
300-1026
300-1120
300-1044
300-1028
300-1210
300-1211
300-1212
300-1214
300-1215
300-1216
300-1217
300-1219*
300-1220*
300-1221**
300-1222
TYPE
Screw-in
Screw-in
Screw-in
Screw-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw-in
Push-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
MATERIAL
Gray vinyl
Gray vinyl
Gray vinyl
Black vinyl
Gray vinyl
Gray Santoprene ® rubber
Black vinyl
Gray vinyl
Gray vinyl
Gray vinyl
Black vinyl
Gray vinyl
Gray vinyl
Gray vinyl
Black vinyl
Black vinyl
Gray vinyl
Gray vinyl
Black vinyl
Black vinyl
Black vinyl
Black vinyl
Black vinyl
Black vinyl
* For Anthony ® refrigerator door models 401, 6001 (before 6/1998)
** For Anthony ® Swingline doors (before 12/1990)
How to Measure a
custom-made Gasket Frame
©2010 Franklin Machine Products
Specify dimensions from edge to edge.
Phone: [phone]
Gasket
Installation Tips
Pre-Installation Tips
• Allow the replacement gasket to reach room temperature
before unfolding.
• Carry the gasket by its corners and avoid squeezing the
folds to prevent breaking the internal magnetic strip.
• Thoroughly clean the area of the door where the gasket
attaches, as well as the cabinet perimeter that the gasket
face contacts.
Field Repairs
• If the vinyl material is accidentally torn or damaged, it
usually can be adequately repaired by welding with a
soldering iron or gluing with vinyl cement.
Distortions
• Our gaskets are made from a vinyl material which can
become distorted from folding. The folding is necessary to
allow a practical and economically sized shipping parcel.
• Th
