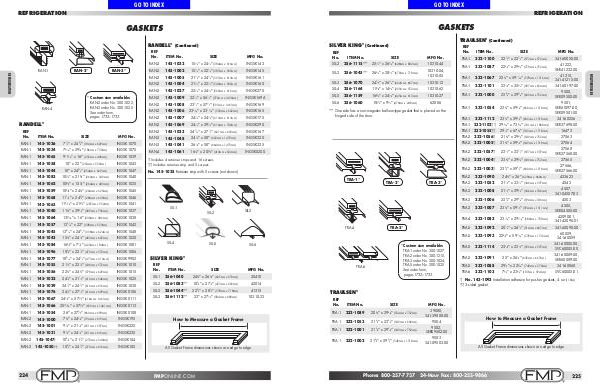

REFRIGERATION
GO TO INDEX REFRIGERATION gaskets
Silver King ®( Continued)
REF |
|
|
|
No. |
ITEM No. |
SIZE |
MFG No. |
SIL-2 256-1115 ** 25 1 ⁄ 2 " x 26 7 ⁄ 8 "( 648mm x 682mm) 10310-44
SIL-2 256-1045 ** 26 3 ⁄ 4 " x 28 1 ⁄ 4 "( 679mm x 718mm)
TRA-4
Traulsen ®
TRA-6
REF |
|
|
|
No. |
ITEM No. |
SIZE |
MFG No. |
TRA-1 232-1089 20 5 ⁄ 8 " x 29 5 ⁄ 8 "( 524mm x 752mm)
39080, 341-39808-00
TRA-1 232-1053 21 5 ⁄ 8 " x 23 5 ⁄ 8 "( 549mm x 600mm) 9504
TRA-1 232-1001 21 5 ⁄ 8 " x 29 5 ⁄ 8 "( 549mm x 752mm)
TRA-1 232-1002 21 5 ⁄ 8 " x 59 3 ⁄ 4 "( 549mm x 1518mm)
10310-04, 10310-05
SIL-3 256-1070 24 1 ⁄ 2 " x 26 1 ⁄ 4 "( 622mm x 667mm) 10310-12 SIL-4 256-1164 11 5 ⁄ 8 " x 14 5 ⁄ 8 "( 295mm x 372mm) 10310-62 SIL-5 256-1159 16 3 ⁄ 4 " x 24 1 ⁄ 8 "( 425mm x 613mm) 10310-27 SIL-6 256-1060 18 1 ⁄ 2 " x 9 3 ⁄ 4 "( 470mm x 248mm) 62806
** One side has a non-magnetic balloon-type gasket that is placed on the hinged side of the door.
TRA-1 *
TRA-2 * TRA-3 *
TRA-5 *
* Custom size available: TRA-1 order No. 300-1027, TRA-2 order No. 300-1215, TRA-3 order No. 300-1024, TRA-5 order No. 300-1025 See order form, pages 1732 – 1733.
9502, SER09502-00
9503 341-09503-00
Traulsen ®( Continued)
REF |
|
|
|
No. |
ITEM No. |
SIZE |
MFG No. |
TRA-1 232-1100 22 1 ⁄ 2 " x 22 1 ⁄ 2 "( 572mm x 572mm) 341-60050-00
TRA-1 232-1087 22 3 ⁄ 4 " x 29 5 ⁄ 8 "( 578mm x 752mm)
TRA-1 232-1067 22 3 ⁄ 4 " x 59 11 ⁄ 16 "( 578mm x 1516mm)
41222, SER41222-00
41215, 341-41215-00
TRA-1 232-1101 23 1 ⁄ 8 " x 25 3 ⁄ 4 "( 587mm x 654mm) 341-60197-00
TRA-1 232-1000 23 5 ⁄ 8 " x 29 5 ⁄ 8 "( 600mm x 752mm)
TRA-1 232-1054 23 5 ⁄ 8 " x 59 3 ⁄ 4 "( 600mm x 1518mm)
9500, SER09500-00
9501, SER61097-00, SER09501-00
TRA-1 232-1112 23 3 ⁄ 4 " x 59 3 ⁄ 4 "( 603mm x 1518mm) 341-60256 TRA-1 232-1102 †† 29 3 ⁄ 16 " x 73 9 ⁄ 16 "( 741mm x 1868mm) SER37698-00 TRA-1 232-1055 †† 29 1 ⁄ 4 " x 67 5 ⁄ 8 "( 743mm x 1718mm) 16473 TRA-2 232-1056 † 21 5 ⁄ 8 " x 29 5 ⁄ 8 "( 549mm x 752mm) 27563 TRA-2 232-1005 † 21 5 ⁄ 8 " x 59 3 ⁄ 4 "( 549mm x 1518mm) 27564
TRA-2 232-1057 † 23 1 ⁄ 2 " x 23 1 ⁄ 2 "( 597mm x 597mm)
27568 SER27568-00
TRA-2 232-1004 † 23 5 ⁄ 8 " x 29 5 ⁄ 8 "( 600mm x 752mm) 27565
TRA-2 232-1003 † 23 5 ⁄ 8 " x 59 3 ⁄ 4 "( 600mm x 1518mm)
27566, SER27566-00
TRA-2 232-1090 24 3 ⁄ 4 " x 26 "( 629mm x 660mm) 433623 TRA-3 232-1052 21 1 ⁄ 2 " x 23 1 ⁄ 2 "( 546mm x 597mm) 4543
TRA-3 232-1008 21 1 ⁄ 2 " x 29 3 ⁄ 8 "( 546mm x 746mm)
4507, 341-04507-03
TRA-3 232-1006 23 3 ⁄ 8 " x 29 3 ⁄ 8 "( 594mm x 746mm) 4503
TRA-3 232-1007 23 3 ⁄ 8 " x 59 1 ⁄ 2 "( 594mm x 1511mm)
TRA-4 232-1083 23 1 ⁄ 16 " x 29 1 ⁄ 16 "( 586mm x 738mm)
4505, SER04505-00
42090-01, 341-42090-01
TRA-5 232-1092 20 1 ⁄ 4 " x 26 1 ⁄ 4 "( 514mm x 667mm) 341-60090-00
TRA-5 232-1093 22 3 ⁄ 4 " x 59 11 ⁄ 16 "( 578mm x 1516mm)
TRA-5 232-1114 23 1 ⁄ 4 " x 23 1 ⁄ 2 "( 590mm x 597mm)
TRA-5 232-1091 25 " x 26 1 ⁄ 4 "( 635mm x 667mm)
60059, 341-60059
341-60005-00, SVC60005-00
341-60089-00, SER60089-00
TRA-5 232-1088 29 1 ⁄ 2 " x 22 9 ⁄ 16 "( 749mm x 573mm) 341-60060 TRA-6 232-1103 7 3 ⁄ 8 " x 23 3 ⁄ 8 "( 187mm x 594mm) svc60005-01
† No. 143-1093 Installation adhesive for push-in gaskets, 4 oz( 118mL) †† 3-sided gasket
How to Measure a Gasket Frame
All Gasket Frame dimensions shown are edge to edge.
Phone: 800-257-7737 24-Hour Fax: 800-255-9866 225
