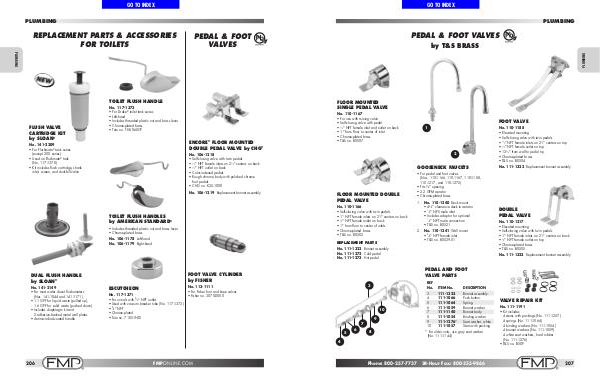

FMP-COMERSAMX CATALOGO FMP | Page 265

PLUMBING
pedal & foot valves
by T&S Brass
Floor Mounted
Single Pedal Valve
No. 110-1167
• For use with mixing valve
• Self-closing valve with pedal
• 1 ⁄ 2 " NPT female inlet and outlet on back
• 1" from floor to center of inlet
• Chrome-plated brass
• T&S no. B0507
Foot Valve
1
No. 110-1188
• Elevated mounting
• Self-closing valve with twin pedals
• 1 ⁄ 2 " NPT female inlets on 2 1 ⁄ 2 " centers on top
• 1 ⁄ 2 " NPT female outlet on top
• 13 3 ⁄ 4 " from wall to pedal tip
• Chrome-plated brass
• T&S no. B0504
2
GOOSENECK FAUCETS
Floor Mounted Double
Pedal Valve
No. 110-1166
• Self-closing valve with twin pedals
• 1 ⁄ 2 " NPT female inlets on 2 1 ⁄ 2 " centers on back
• 1 ⁄ 2 " NPT female outlet on back
• 1" from floor to center of inlets
• Chrome-plated brass
• T&S no. B0502
REPLACEMENT PARTS
No. 111-1322 Replacement bonnet assembly
• For pedal and foot valves
(Nos. 110-1166, 110-1167, 110-1188,
110-1217, and 110-1275)
• Fits 7 ⁄ 8 " opening
• 2.2 GPM aerator
• Chrome-plated brass
1. No. 110-1240 Deck mount
• 4 3 ⁄ 4 " clearance deck to aerator
• 1 ⁄ 2 " NPS male inlet
• Includes adaptor for optional
1
⁄ 4 " NPT male connection
• T&S no. B0521
2. No. 110-1241 Wall mount
• 3 ⁄ 8 " NPT female inlet
• T&S no. B0529-01
No. 111-1322 Bonnet assembly
No. 111-1272 Cold pedal
No. 111-1273 Hot pedal
Double
Pedal Valve
No. 110-1217
• Elevated mounting
• Self-closing valve with twin pedals
• 1 ⁄ 2 " NPT female inlets on 2 1 ⁄ 2 " centers on back
• 1 ⁄ 2 " NPT female outlet on top
• Chrome-plated brass
• T&S no. B0505
No. 111-1322 Replacement bonnet assembly
pedal and foot
Valve Parts
REF
No.
3
10
9
7
5
6
8
ITEM No.
DESCRIPTION
3
Bonnet assembly
111-1322
4
Push button
111-1066
5
Spring
111-1064
6
Bonnet washer
111-1059
7
Bonnet body
111-1140
8
Binding washer
111-1054
9
Seat washer, white
111-1276*
10
Stem with packing
111-1057
* For older units, use gray seat washer
(No. 111-1144)
4
Phone: [phone]
24-Hour Fax: [phone]
Valve repair kit
No. 111-1191
• Kit includes:
4 stems with packings (No. 111-1257)
4 springs (No. 111-1064)
4 binding washers (No. 111-1054)
4 bonnet washers (No. 111-1059)
4 white seat washers, hard rubber
(No. 111-1276)
• T&S no. B50P
