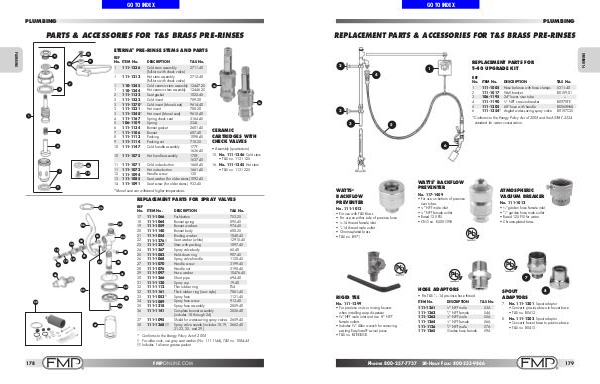

PLUMBING 2 Replacement Parts for T-40 Upgrade Kit 1 4 REF No. 1 2 3 4 5 6 2 3 Replacement Parts & Accessories for T&S Brass Pre-Rinses ITEM No. 111-1005 111-1017 106-1195 111-1190 111-1205 111-1254* DESCRIPTION Hose balance with hose clamps Wall bracket 24" lower riser tube 3 ⁄ 8 " NPT vacuum breaker 68" hose with handle Angled water-saving spray valve T&S No. 5311-40 B0109-01 – B0970FE B0068HML B0107C35 *Conforms to the Energy Policy Act of 2005 and the ASTM F-2324 standard for water conservation. 5 6 WATTS ® BACKFLOW PREVENTER Watts ® Backflow Preventer No. 111-1012 • For use with T&S Brass • For use on either side of pre-rinse hose • 3 ⁄ 4 -14 thread female inlet • 3 ⁄ 4 -14 thread male outlet • Chrome-plated brass • T&S no. B971 No. 117-1409 • For use on bottom of pre-rinse riser tubes • 3 ⁄ 8 " NPT male inlet • 3 ⁄ 8 " NPT female outlet • Rated 125 PSI • CHG no. K50X139B atmospheric vacuum breaker No. 111-1013 • 3 ⁄ 4 " garden hose female inlet • 3 ⁄ 4 " garden hose male outlet • Rated 125 PSI for water • Chrome-plated brass 7 Hose Adaptors • Fits T&S RIGID TEE No. 111-1299 • For pre-rinse units or mixing faucets when installing soap dispenser • 3 ⁄ 8 " NPT male inlet and two 3 ⁄ 8 " NPT female outlets • Includes 3 ⁄ 8 " Allen wrench for removing existing EasyInstall ® swivel piece • T&S no. B-TEE-RGD Phone: 800-257-7737 3 ⁄ 4 Item No. 111-1261 111-1262 111-1263 111-1264 111-1126 111-1265 -14 pre-rinse hose thread Description T&S no. 3 ⁄ 8 " NPT male 53A 3 ⁄ 8 " NPT female 54A 1 ⁄ 2 " NPT male 55A 1 ⁄ 2 " NPT female 56A 3 ⁄ 4 " NPT male 57A Garden hose female 59A 24-Hour Fax: 800-255-9866 Spout Adaptors 8 7. No. 111-1201 Spout adaptor • Converts pre-rinse base to faucet base • T&S no. B0412 8. No. 111-1202 Spout adaptor • Converts faucet base to pre-rinse base • T&S no. B0413 179
