PLUMBING

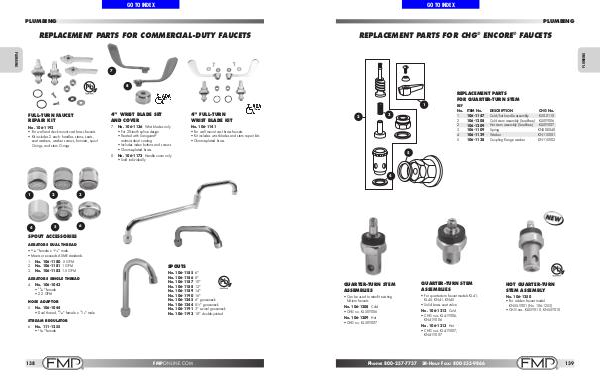

Replacement Parts for chg ® Encore ® Faucets
Replacement Parts
for Quarter-TURN STEM
1
3
2
REF
No.
1
2
2
3
4
5
ITEM No.
106-1147
106-1208
106-1209
106-1109
106-1129
106-1128
DESCRIPTION
CHG No.
Cold/hot handle assembly
K50-0110
Cold stem assembly (lead-free) KL50Y006
Hot stem assembly (lead-free)
KL50Y007
Spring
KN50-X048
Washer
KN11X001
Coupling flange washer
KN11X002
5
4
©2012 Franklin Macchine Products
QUARTER-TURN STEM
ASSEMBLIES QUARTER-TURN STEM
ASSEMBLIES HOT QUARTER-TURN
STEM ASSEMBLY
• Can be used to retrofit existing
full-turn faucets • For quarter-turn faucet models KL41,
KL45, KN41, KN45
• Solid brass seat valve No. 106-1250
• For add-on faucet model
KN55-Y001 (No. 106-1253)
• CHG nos. KL55Y010, KN55Y010
No. 106-1208 Cold
• CHG no. KL50Y006
No. 106-1209 Hot
• CHG no. KL50Y007
Phone: [phone]
No. 106-1212 Cold
• CHG nos. KL41Y006,
KN41Y006
No. 106-1213 Hot
• CHG nos. KL41Y007,
KN41Y007
24-Hour Fax: [phone]
139
