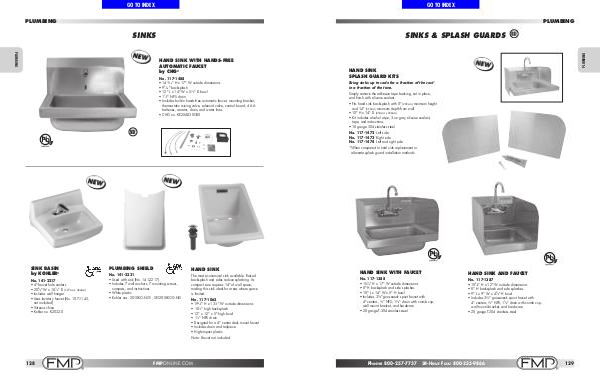

PLUMBING
SINKS & Splash Guards
HAND SINK
SPLASH GUARD KITS
Bring sinks up to code for a fraction of the cost*
in a fraction of the time.
Simply remove the adhesive tape backing, set in place,
and finish with silicone sealant.
• Fits hand sink backsplash with 8" (203mm) minimum height
and 14" (356mm) minimum depth from wall
• 10" H x 14" D (254mm x 356mm)
• Kit includes alcohol wipe, 3 oz gray silicone sealant,
tape, and instructions
• 18 gauge 304 stainless steel
No. 117-1472 Left side
No. 117-1473 Right side
No. 117-1474 Left and right side
*When compared to total sink replacement or
alternate splash guard installation methods.
HAND SINK with FAUCET HAND SINK AND FAUCET
No. 117-1388
• 15 1 ⁄ 4 " H x 17" W outside dimensions
• 8" H backsplash and side splashes
• 10" L x 14" W x 5" H bowl
• Includes 3½" gooseneck spout faucet with
4" centers, ½" NPS; 1 7 ⁄ 8 " drain with crumb cup,
wall mount bracket, and hardware
• 20 gauge T-304 stainless steel No. 117-1387
• 10 3 ⁄ 8 " H x 12" W outside dimensions
• 8" H backsplash and side splashes
• 9" L x 9" W x 4 3 ⁄ 8 " H bowl
• Includes 3½" gooseneck spout faucet with
4" centers, ½" NPS; 1 7 ⁄ 8 " drain with crumb cup,
wall mount bracket, and hardware
• 20 gauge T-304 stainless steel
Phone: 800-257-7737
24-Hour Fax: 800-255-9866
129
