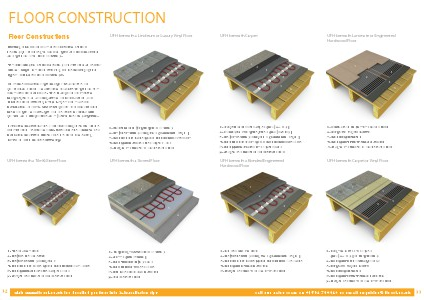

Flexel Complete Price Guide v1 | Page 33

UFH beneath Laminate or Engineered
Hardwood Floor

UFH beneath Carpet

1

1

2

3

3
4
5

2

4
5

6

1. Carpet non rubber backed ( max 2.0 tog )
2. Low tog underlay if required ( max 0.8 tog )
3. Flexible levelling compound ( 12mm min depth )
4. ECOFLOOR Cable Mat or ECOFLEX loose cable
5. ECOMAX insulated tile backer board
6. Suspended timber or concrete subfloor

1. Laminate or Engineered Board Floor
2. Polyester Vapour Barrier
3. ECOFILM Element
4. ECOMAX-LITE Thermal Insulation
5. Suspended timber or concrete subfloor

UFH beneath a Bonded Engineered
Hardwood Floor

UFH beneath Carpet or Vinyl Floor

1

1
2

2

3

3
4

4

6

5

1. Bonded wooden floor
2. Flexible levelling compound ( 12mm min depth )
3. ECOFLOOR Cable Mat or ECOFLEX loose cable
4. ECOMAX thermal insula ѥ
