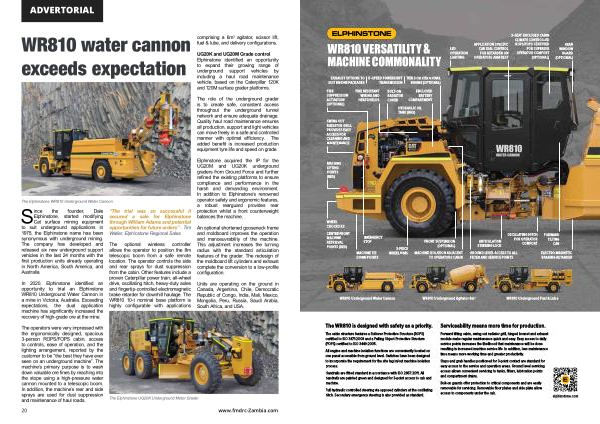

WR810 VERSATILITY & MACHINE COMMONALITY |
LED OPERATION LIGHTING |
APPLICATION SPECIFIC CAB DIAL CONTROL FOR RETARDER ON
OPERATORS ARM REST
3-SEAT ENCLOSED CABIN CLIMATE CONTROLLED ROPS / FOPS CERTIFIED
FOR SUPERIOR OPERATOR COMFORT
( OPTIONAL )
|
REAR WINDOW
GUARD ( OPTIONAL )
|
EXHAUST OPTIONS TO SUIT ENGINE PACKAGES
5 -SPEED POWERSHIFT TRANSMISSION
TIER 3 OR TIER 4 FINAL ENGINE ( OPTIONAL )
FIRE SUPPRESSION ACTUATION ( OPTIONAL )
SWING OUT RADIATOR GRILL PROVIDES EASY ACCESS FOR CLEANING AND MAINTENANCE
FIRE RESISTANT WIRING AND HEATSHIELDS
BOLT-ON RADIATOR COVER
ENCLOSED BATTERY
COMPARTMENT
HYDRAULIC OIL TANK ( RHS )
MACHINE LIFTING POINTS ( RED )
WHEEL CHOCKS X2
CENTRE FRONT MACHINE RETRIEVAL POINTS ( RED ) |
EMERGENCY STOP
MACHINE TIE DOWN POINTS
|
3-PIECE WHEEL RIMS |
FRONT SUSPENSION ( OPTIONAL )
MACHINE ISOLATION ADJACENT TO OPERATORS CABIN
|
ARTICULATION STEERING LOCK
GROUND LEVEL ACCESS TO ALL FILTER AND SERVICE POINTS
OSCILLATING HITCH FOR OPERATOR
COMFORT
|
FORWARD TILTING
CAB
ELECTRO-MAGNETIC BRAKING RETARDER
|
WR810 Underground Water Cannon WR810 Underground Agitator 6m 3 WR810 Underground Fuel & Lube
The WR810 is designed with safety as a priority .
The cabin structure features a Rollover Protective Structure ( ROPS ) certified to ISO 3471:2008 and a Falling Object Protective Structure ( FOPS ) certified to ISO 3449:2005 .
All engine and machine isolation functions are conveniently located on one panel accessible from ground level . Switches have been designed to incorporate the requirement for the site tag in / out machine isolation process .
Handrails are fitted standard in accordance with ISO 2867:2011 . All handrails are painted green and designed for 3-point access to cab and machine .
Full hydraulic controlled steering via opposed cylinders at the oscillating hitch . Secondary emergency steering is also provided as standard .
Serviceability means more time for production .
Forward tilting cabin , swing out radiator grill , hinged bonnet and exhaust module make regular maintenance quick and easy . Easy access to daily service points increases the likelihood that maintenance will be done resulting in increased machine service life . In addition , less maintenance time means more working time and greater productivity .
Steps and grab handles positioned for 3-point contact are standard for easy access to the service and operation areas . Ground level servicing access allows convenient servicing to tanks , filters , lubrication points and compartment drains .
Bolt-on guards offer protection to critical components and are easily removable for servicing . Removable floor plates and side plate allow access to components under the cab . elphinstone . com
