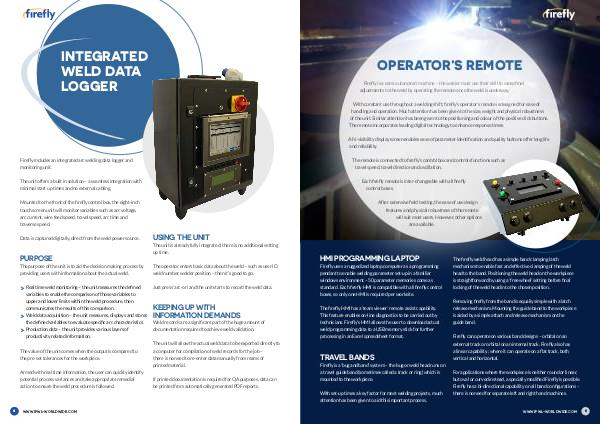

INTEGRATED
WELD DATA
LOGGER
Firefly includes an integrated arc welding data logger and
monitoring unit.
The unit offers a built in solution – a seamless integration with
minimal start up times and no external cabling.
Mounted to the front of the firefly control box, the eight-inch
touch screen unit will monitor variables such as arc voltage,
arc current, wire feed speed, travel speed, arc time and
traverse speed.
Data is captured digitally, direct from the weld power source.
USING THE UNIT
The unit is already fully integrated; there is no additional setting
PURPOSE
up time.
The purpose of the unit is to aid the decision making process by
The operator enters basic data about the weld – such as user ID,
providing users with information about the actual weld.
weld number, welder position – then it’s good to go.
>>Real time weld monitoring – the unit measures the defined
Just press ‘arc-on’ and the unit starts to record the weld data.
variables to enable the comparison of those variables to
upper and lower limits within the weld procedure, then
Weld data acquisition – the unit measures, displays and stores
>>
KEEPING UP WITH
INFORMATION DEMANDS
the defined variables to evaluate specific arc characteristics.
Weld records are a significant part of the huge amount of
>>
documentation required to achieve weld validation.
communicates the results of this comparison.
Production data – the unit provides various layers of
productivity related information.
The unit will allow the actual weld data to be exported directly to
The value of the unit comes when the output is compared to
a computer for compilation of weld records for the job –
the pre-set tolerances for the workpiece.
there is no need to re-enter data manually from reams of
printed material.
Armed with real time information, the user can quickly identify
4
potential process variances and take appropriate remedial
If printed documentation is required for QA purposes, data can
action to ensure the weld procedure is followed.
be printed from automatically generated PDF reports.
