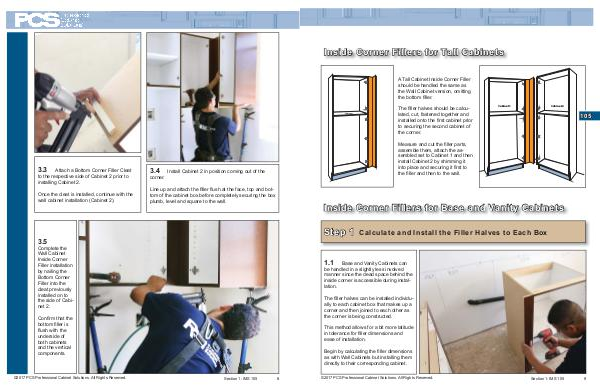

Field Installation and Service Manual IMS105 | Page 8

3.3
Attach a Bottom Corner Filler Cleat
to the respective side of Cabinet 2 prior to
installing Cabinet 2.
Once the cleat is installed, continue with the
wall cabinet installation (Cabinet 2).
3.4
Install Cabinet 2 in position coming out of the
corner.
Line up and attach the fi ller fl ush at the face, top and bot-
tom of the cabinet box before completely securing the box
plumb, level and square to the wall.
3.5
Complete the
Wall Cabinet
Inside Corner
Filler installation
by nailing the
Bottom Corner
Filler into the
cleat previously
installed on to
the side of Cabi-
net 2.
Confi rm that the
bottom fi ller is
fl ush with the
underside of
both cabinets
and the vertical
components.
©2017 PCS Professional Cabinet Solutions. All Rights Reserved.
Section 1: IMS 105
8
