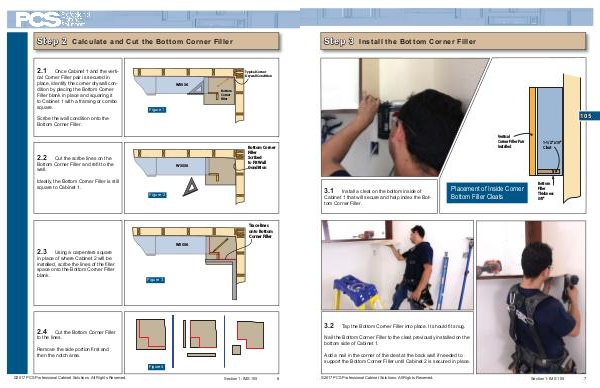

Field Installation and Service Manual IMS105 | Page 6

Step 2
Calculate and Cut the Bottom Corner Filler
2.1
Once Cabinet 1 and the verti-
cal Corner Filler pair is secured in
place, identify the corner drywall con-
dition by placing the Bottom Corner
Filler blank in place and squaring it
to Cabinet 1 with a framing or combo
square.
Typical Corner
Drywall Condition
W3036
Bottom
Corner
Filler
Figure 1
Scribe the wall condition onto the
Bottom Corner Filler.
2.2 Cut the scribe lines on the
Bottom Corner Filler and refi t to the
wall.
W3036
Bottom Corner
Filler
Scribed
to Fit Wall
Condition
Ideally, the Bottom Corner Filler is still
square to Cabinet 1.
Figure 2
Trace lines
onto Bottom
Corner Filler
W3036
2.3 Using a carpenters square
in place of where Cabinet 2 will be
installed, scribe the lines of the fi ller
space onto the Bottom Corner Filler
blank.
Figure 3
2.4 Cut the Bottom Corner Filler
to the lines.
Remove the side portion fi rst and
then the notch area.
Figure 4
©2017 PCS Professional Cabinet Solutions. All Rights Reserved.
Section 1: IMS 105
6
