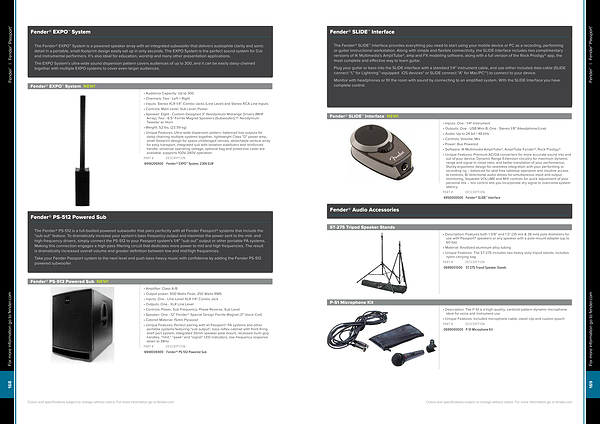

Fender® EXPO™ System
The Fender® EXPO™ System is a powered speaker array with an integrated subwoofer that delivers audiophile clarity and sonic
detail in a portable, small-footprint design easily set up in only seconds. The EXPO System is the perfect sound system for DJs
and instrumental performers. It’s also ideal for education, worship and many other presentation applications.
The EXPO System’s ultra-wide sound dispersion pattern covers audiences of up to 300, and it can be easily daisy-chained
together with multiple EXPO systems to cover even larger audiences.
Fender® EXPO™ System NEW!
• Audience Capacity: Up to 300
• Channels: Two - Left + Right
• Inputs: Stereo XLR 1/4” Combo Jacks (Line Level) and Stereo RCA Line Inputs
• Controls: Main Level, Sub Level, Power
• Speaker: Eight - Custom-Designed 3” Neodymium Midrange Drivers (MHF
Array), Two - 6.5” Ferrite Magnet Speakers (Subwoofer), 1" Neodymium
Tweeter w/ Horn
• Weight: 52 lbs. (23.59 kg)
• Unique Features: Ultra-wide dispersion pattern, balanced line outputs for
daisy-chaining multiple systems together, lightweight Class "D" power amp,
small-footprint design for space-challenged venues, detachable vertical array
for easy transport, integrated sub with isolation stabilizers and reinforced
handle, universal operating voltage, optional bag and protective cover are
available, supports 100V-240V operation
PART #
DESCRIPTION
6948206900 Fender® EXPO™ System, 230V EUR
Fender® PS-512 Powered Sub
The Fender® PS-512 is a full-bodied powered subwoofer that pairs perfectly with all Fender Passport® systems that include the
“sub out” feature. To dramatically increase your system’s bass frequency output and maximize the power sent to the mid- and
high-frequency drivers, simply connect the PS-512 to your Passport system’s 1/4” “sub out” output or other portable PA systems.
Making this connection engages a high-pass filtering circuit that dedicates more power to mid and high frequencies. The result
is dramatically increased overall volume and greater definition between low and mid/high frequencies.
Take your Fender Passport system to the next level and push bass-heavy music with confidence by adding the Fender PS-512
powered subwoofer.
• Amplifier: Class A/B
• Output power: 500 Watts Peak, 250 Watts RMS
• Inputs: One - Line-Level XLR 1/4" Combo Jack
• Outputs: One - XLR Line Level
• Controls: Power, Sub Frequency, Phase Reverse, Sub Level
• Speaker: One - 12" Fender® Special Design Ferrite Magnet (3" Voice Coil)
• Cabinet Material: 15mm Plywood
• Unique Features: Perfect pairing with all Passport® PA systems and other
portable systems featuring “sub output”, bass-reflex cabinet with front-firing
shelf port system, integrated 35mm speaker pole mount, recessed multi-grip
handles, “limit,” “peak” and “signal” LED indicators, low-frequency response
down to 38Hz
PART #
DESCRIPTION
6948006900 Fender® PS-512 Powered Sub
168
For more information go to fender.com
Fender® PS-512 Powered Sub NEW!
Colors and specifi
