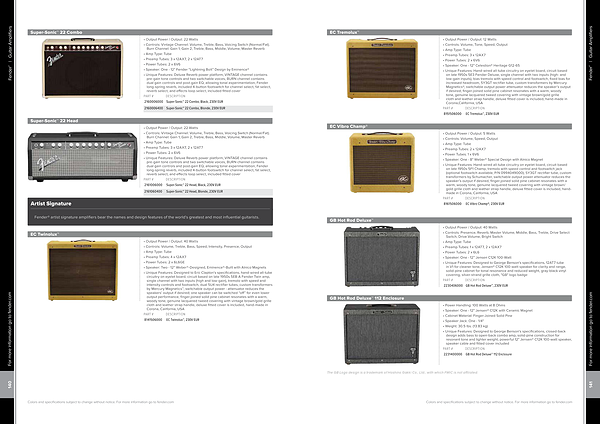

Fender Illustrated Product List 2014 | Page 140

Fender® | Guitar Amplifiers

Super-Sonic™ 22 Combo
• Output Power / Output: 22 Watts
• Controls: Vintage Channel: Volume, Treble, Bass, Voicing Switch (Normal/Fat).
Burn Channel: Gain 1, Gain 2, Treble, Bass, Middle, Volume, Master Reverb
• Amp Type: Tube
• Preamp Tubes: 3 x 12AX7, 2 x 12AT7
• Power Tubes: 2 x 6V6
• Speaker: One - 12" Fender “Lightning Bolt” Design by Eminence®
• Unique Features: Deluxe Reverb power platform, VINTAGE channel contains
pre-gain tone controls and two switchable voices, BURN channel contains
dual gain controls and post-gain EQ, allowing tonal W
