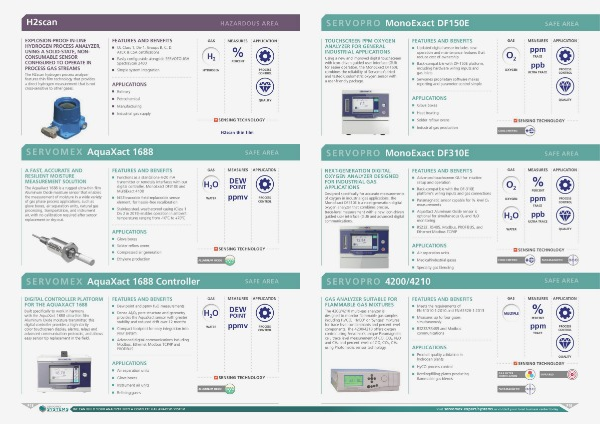

H2scan
HAZARDOUS AREA
EXPLOSION-PROOF IN-LINE
HYDROGEN PROCESS ANALYZER,
USING A SOLID-STATE, NON-
CONSUMABLE SENSOR
CONFIGURED TO OPERATE IN
PROCESS GAS STREAMS
The H2scan hydrogen process analyzer
features thin film technology that provides
a direct hydrogen measurement that is not
cross-sensitive to other gases.
FEATURES AND BENEFITS
UL Class 1, Div 1, Groups B, C, D.
ATEX & CSA certifications
Easily configurable alongside SERVOTOUGH
SpectraScan 2400
Simple system integration
GAS MEASURES
H 2 %
APPLICATION
PERCENT
PROCESS
CONTROL
HYDROGEN
APPLICATIONS
S E R V O P R O MonoExact DF150E
TOUCHSCREEN PPM OXYGEN
ANALYZER FOR GENERAL
INDUSTRIAL APPLICATIONS
Using a new and improved digital touchscreen
with icon-driven guided user interface (GUI)
for easier operation, the MonoExact DF150E
combines the reliability of Servomex’s tried
and tested Coulometric oxygen sensor with
a user-friendly package.
FEATURES AND BENEFITS
Updated digital sensor includes new
operation and maintenance features that
reduce cost of ownership
Back-compatible with DF-150E platform,
including hardware wiring inputs and
gas inlets
SAFE AREA
GAS
MEASURES
APPLICATION
ppm
O 2
TRACE
ppb
OXYGEN
PROCESS
CONTROL
ULTRA TRACE
Servomex proprietary software makes
reporting and parameter control simple
Refinery
Petrochemical
APPLICATIONS
QUALITY
Manufacturing Glove boxes
Industrial gas supply Heat treating
SENSING TECHNOLOGY
QUALITY
Solder reflow ovens
SENSING TECHNOLOGY
Industrial gas production
H2scan thin film
S E R V O M E X AquaXact 1688
A FAST, ACCURATE AND
RESILIENT MOISTURE
MEASUREMENT SOLUTION
The AquaXact 1688 is a rugged ultra-thin film
Aluminum Oxide moisture sensor that enables
the measurement of moisture in a wide variety
of gas phase process applications, such as
glove boxes, air separation units, natural gas
processing, transportation, and instrument
air, with no calibration required after sensor
replacement or dry-out.
SAFE AREA
FEATURES AND BENEFITS
Functions as a standalone 4-20 mA
transmitter or remotely interfaces with our
digital controller, MonoExact DF310E and
MultiExact 4100
APPLICATION
DEW
H 2 O
NIST-traceable field-replaceable sensor
element, for hassle-free recalibration
MEASURES
GAS
POINT
ppmv
WATER
PROCESS
CONTROL
Stainless steel, weatherproof casing (Class 1
Div 2 in 2019) enables operation in ambient
temperatures ranging from -10 o C to +70 o C
S E R V O P R O MonoExact DF310E
NEXT-GENERATION DIGITAL
OXYGEN ANALYZER DESIGNED
FOR INDUSTRIAL GAS
APPLICATIONS
Designed specifically for accurate measurements
of oxygen in industrial gas applications, the
MonoExact DF310E is a next-generation digital
oxygen analyzer that combines precise,
trace-level measurement with a new icon-driven
guided user interface (GUI) and advanced digital
communications.
APPLICATIONS
FEATURES AND BENEFITS
Advanced touchscreen GUI for intuitive
setup and operation
Back-compatible with the DF-310E
platform's wiring inputs and gas connections
Paramagnetic sensor capable for % level O 2
measurements
AquaXact Aluminum Oxide sensor is
optional for simultaneous O 2 and H 2 O
monitoring
RS232, RS485, Modbus, PROFIBUS, and
Ethernet Modbus TCP/IP
SAFE AREA
GAS MEASURES
O 2 %
APPLICATION
PERCENT
ppm
OXYGEN
PROCESS
CONTROL
TRACE
H 2 O
ppb
ULTRA TRACE
QUALITY
WATER
Glove boxes
Solder reflow ovens
Ethylene production
APPLICATIONS
SENSING TECHNOLOGY
Compressed air generation
SENSING TECHNOLOGY
Air separation units
Medical/industrial gases
ALUMINUM OXIDE
Specialty gas blending
S E R V O M E X AquaXact 1688 Controller
DIGITAL CONTROLLER PLATFORM
FOR THE AQUAXACT 1688 FEATURES AND BENEFITS
Built specifically to work in harmony
with the AquaXact 1688 ultra-thin film
Aluminum Oxide moisture transmitter, this
digital controller provides a high-clarity
color touchscreen display, alarms, relays and
advanced communication protocols, and allows
easy sensor tip replacement in the field. Dense Al 2 O 3 pore structure and geometry
provides the AquaXact sensor with greater
stability and reduced drift over 12 months
Dew point and ppmv H 2 O measurements
Compact footprint for easy integration into
your system
SAFE AREA
MEASURES
GAS
APPLICATION
DEW
H 2 O
POINT
ppmv
WATER
PROCESS
CONTROL
Advanced digital communications including
Modbus, Ethernet Modbus TCP/IP and
PROFIBUS
S E R V O P R O 4200/4210
GAS ANALYZER SUITABLE FOR
FLAMMABLE GAS MIXTURES FEATURES AND BENEFITS
The 4200/4210 multi-gas analyzer is
designed to monitor flammable gas samples
including H 2 /CO, ‘HyCO’ or ‘Syngas’ mixtures
for trace level contaminants and percent level
components. The 4200/4210 offers oxygen
control using Servomex’s unique Paramagnetic
cell, trace level measurement of CO, CO 2 , N 2 O
and CH 4 and percent levels of CO, CO 2 , CH 4
using Photometric sensor technology.
RS232/RS485 and Modbus
communications
Instrument air units
Refining gases
P18
WE CAN BUILD YOUR ANALYZER INTO A COMPLETE GAS ANALYSIS SYSTEM
Product quality validation in
hydrogen plants
HyCO process control
SENSING TECHNOLOGY
GAS MEASURES
MULTIPLE %
APPLICATION
PERCENT
ppm
TRACE
PROCESS
CONTROL
APPLICATIONS
Air separation units
Glove boxes
Meets the requirements of
EN 61010-1:2010 and EN 61326-1:2013
Measures up to four gases
simultaneously
APPLICATIONS
SAFE AREA
QUALITY
SENSING TECHNOLOGY
Bottling/filling plants producing
flammable gas blends
ALUMINUM OXIDE
Visit
servomex.expert/systems
or contact your local business center today
