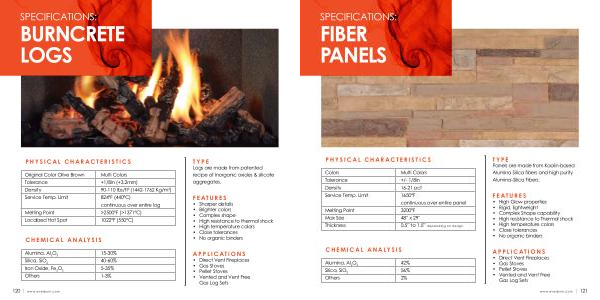

SPECIFICATIONS :
FIBER PANELS
PHYSICAL CHARACTERISTICS
Colors Tolerance Density Service Temp . Limit
Melting Point Max Size Thickness
CHEMICAL ANALYSIS
Alumina , Al 2
O 3
Silica , SiO 2 Others
Multi Colors +/ - 1 / 8in 16-21 pcf 1650 º F continuous over entire panel 3200 º F 48 ” x 29 ” 0.5 ” to 1.5 ” depending on design
42 % 56 % 2 %
TYPE
Panels are made from Kaolin-based
Alumina Silica fibers and high purity Alumina-Silica Fibers .
FEATURES
• High Glow properties
• Rigid , lightweight
• Complex Shape capability
• High resistance to Thermal shock
• High temperature colors
• Close tolerances
• No organic binders
APPLICATIONS
• Direct Vent Fireplaces
• Gas Stoves
• Pellet Stoves
• Vented and Vent Free Gas Log Sets www . everburn . com | 121
