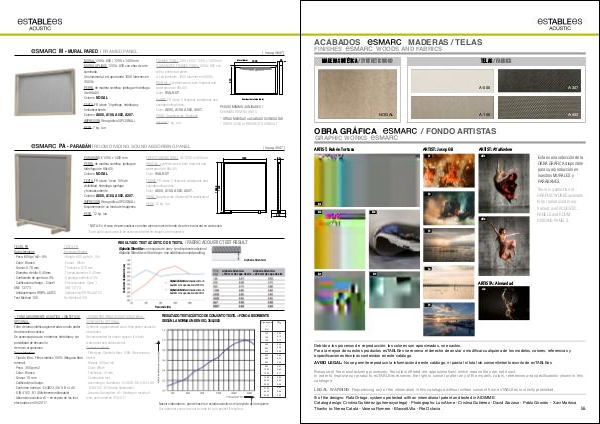

M - MURAL PARED / FRAMED PANEL
[ In pag. 46-47]
FRAMED PANEL1200 x 800 / 1200 x 1400 mm
ILLUMINATED FRAMED PANEL:1200 x 800 con
with a printed art piece.
A Led luminaire, 1000 lúmenes en 3000k..
PROFILE ; synthetic wood, both fireproof and
waterproof (de 80x40).
Color: WALNUT
PERFIL de madera sintética ignifuga e hidrófuga
(de 80x40).
Colores: NOGAL
Mural (obra)
80
1200
MURAL 1200 x 800 / 1200 x 1400 mm
MURAL APLIQUE 1200 x 800 con obra de arte
iluminada.
Una luminaria Led, aportando 1000 lúmenes en
3000k.
Iluminación Interna (obra)
FABRIC FR (class 1) fireproof, waterproof, and
soundproofing fabric.
PEDIDO MINIMO 4 UNIDADES /
Color: A000, A100, A502, A307.
MINIMUM ORDER 4 UNITS
PRINT: Graphic work (Optional)
* OTRAS MEDIDAS o ACABADOS CONSULTAR
WEIGHT 7 kg. /un.
* OTHER SIZES or FINISHES TO CONSULT
TEXTIL FR (clase 1) ignifugo, hidrófugo y
fonoabsorbente.
Colores: A000, A100, A502, A307.
IMPRESIÓN Obra gráfica (OPCIONAL).
PESO: 7 kg. /un.
PA - PARABÁN / ROOM DIVIDING SOUND ABSORBING PANEL
FREE STANDING PANEL DE 1200 x1400 mm
PERFIL de madera sintética ignifuga e
hidrófuga (de 80x40).
Colores: NOGAL PROFILE ; synthetic wood, both fireproof and
waterproof (de 80x40).
Color: WALNUT
TEXTIL FR (clase 1) con 15% de
visibilidad, hidrófugo, ignifugo
y fonoabsorbente.
Colores: A000, A100, A502, A307. FABRIC FR (class 1) fireproof, waterproof, and
soundproofing fabric.
Color: A000, A100, A502, A307.
IMPRESIÓN Obra gráfica (OPCIONAL).
Disponemos de un fondo de imágenes. PESO: 12 kg. /un.
PESO: 12 kg. /un. .
80
1200
PARABÁN DE 1200 x 1400 mm
[ In pag. 45-47 ]
PRINT: Graphic work (Optional)Personalization*
400
* NOTA: En el caso de personalizar con obra ajena a nuestro fondo de arte se valorará en cada caso.
*Each particular case will be assessed if different images are requested
TEXTIL FR
Technical details:
- Weight 605 gr/m2+- 5%
- Colour: White
- Thickness: 0,78 mm
- Thread diameter: 0,40mm
- Opening coefficient: 3%
- Fire resistance: Class 1
UNE 13773
-Antibacterial 99,9% AATCC
Test Method 100
RESULTADO TEST ACÚSTICO DE TEXTIL / FABRIC ACOUSTIC TEST RESULT
Alphalia Silent Aw con espacio de aire y sin absorbente adicional
Alphalia Silent Aw with air layer- non additional soundproofing
Alphalia Silent Aw
TEXTIL FR
Datos técnicos:
- Peso: 605 gr/m2+- 5%
- Color: Blanco
- Grosor: 0,78 mm
- Diametro de hilo: 0,40mm
- Coeficiente de apertura :3%
- Calificación al fuego: - Clase1
UNE 13773
- Antibacteriano: 99,9% AATCC
Test Method 100
Alphalia Silent Aw
Alphalia Silent Aw
+100 mm de capa de aire +400 mm de capa de aire
Alphalia Silent Aw tensada sobre un
bastidor con capa de aire de 100 mm
Alphalia Silent Aw tensada sobre un
bastidor con capa de aire de 400 mm
Frecuencia (Hz)
+ FONO ABSORBENTE ACÚSTICO ( SINTÉTICO)
OPCIONAL
Filtro de lana sintética aglomerada con alto poder
de absorción acústica.
Se aconseja para uso en interior, hidrófobo y sin
posibilidad de desarrollo
de micro-organismos.
Datos técnicos:
- Tipo de filtro: Filtro sintético 100% (Ninguna fibra
mineral)
- Peso: 350 gr/m2
- Color: Blanco
- Grosor: 10 mm
- Calificación al fuego:
- Conforme normas: - En3823 (Sb1): B-s1.d0
- DIN 4102 - B1 (Difícilmente inflamable)
- Absorción acústica: xS = en espera de los test
efectuados en 05/2017.
+SOUNDPROOFING ACOUSTIC MATERIAL
(SYNTHETIC) OPTIONAL
Synthetic, agglomerated wool- High power acoustic
absorption.
Recommended for indoor spaces. It is both
waterproof and anti-bacterial.
Technical details:
- Filter type: Synthetic filter 100% (Non mineral
fibers)
- Weight: 350 gr/m2
- Color: White
- Thickness: 10 mm
- Combustion test:
- According to standards: - En3823 (Sb1): B-s1.d0
- DIN 4102 - B1(Hardly flammable)
- Acoustic Absorption: xS= Waiting on results of
tests performed on 05/2017
RESULTADO TEST ACÚSTICO DE CONJUNTO TEXTIL + FONO-ABSORBENTE
SEGÚN LA NORMA UNE EN ISO, 354;2003
Frecuencia
f
(Hz)
100 0,09
125 0,13
160 0,17
200 0,20
250 0,26
315 0,36
400 0,42
500 0,47
630 0,55
800 0,61
1000 0,66
1250 0,77
1600 0,85
2000
0,92
2500 0,96
3150 0,99
4000 0,98
5000 0,90
Nuestro laboratorio, puede hacer un estudio acústico si el proyecto así lo requiere.
Our laboratory can carry out a study for your project if required..
