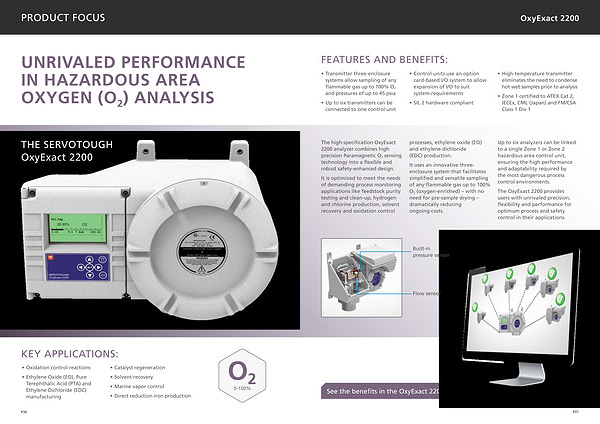

OxyExact 2200
FEATURES AND BENEFITS :
• Transmitter three-enclosure systems allow sampling of any flammable gas up to 100 % O 2 and pressures of up to 45 psia
• Up to six transmitters can be connected to one control unit
• Control units use an option card-based I / O system to allow expansion of I / O to suit system requirements
• SIL 2 hardware compliant
• High-temperature transmitter eliminates the need to condense hot wet samples prior to analysis
• Zone 1 certified to ATEX Cat 2 , IECEx , CML ( Japan ) and FM / CSA Class 1 Div 1
The high-specification OxyExact 2200 analyzer combines high precision Paramagnetic O 2 sensing technology into a flexible and robust safety-enhanced design .
It is optimized to meet the needs of demanding process monitoring applications like feedstock purity testing and clean-up , hydrogen and chlorine production , solvent recovery and oxidation control processes , ethylene oxide ( EO ) and ethylene dichloride ( EDC ) production .
It uses an innovative threeenclosure system that facilitates simplified and versatile sampling of any flammable gas up to 100 % O 2 ( oxygen-enriched ) – with no need for pre-sample drying – dramatically reducing ongoing costs .
Up to six analyzers can be linked to a single Zone 1 or Zone 2 hazardous area control unit , ensuring the high performance and adaptability required by the most dangerous process control environments .
The OxyExact 2200 provides users with unrivaled precision , flexibility and performance for optimum process and safety control in their applications .
Built-in pressure sensor
Flow sensor
