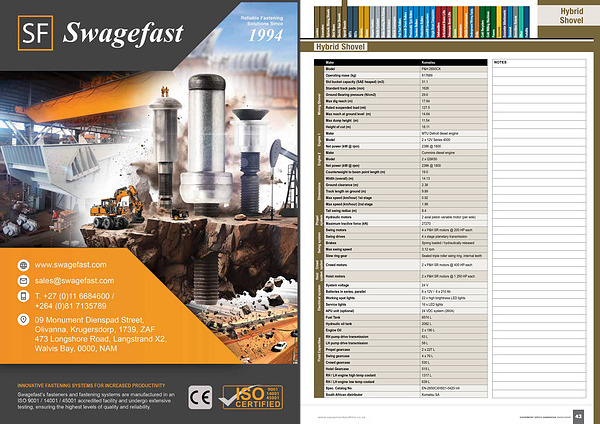

Make |
Komatsu |
Model |
P & H 2650CX |
Operating mass( kg) |
817889 |
Std bucket capacity( SAE heaped)( m3) |
31.1 |
Standard track pads( mm) |
1626 |
Ground Bearing pressure( N / cm2) |
29.6 |
Max dig reach( m) |
17.84 |
Rated suspended load( mt) |
127.5 |
Max reach at ground level( m) |
14.64 |
Max dump height( m) |
11.54 |
Height of cut( m) |
18.11 |
Make |
MTU Detroit diesel engine |
Model |
2 x 12V Series 4000 |
Net power( kW @ rpm) |
2386 @ 1800 |
Make |
Cummins diesel engine |
Model |
2 x QSK50 |
Net power( kW @ rpm) |
2386 @ 1800 |
Counterweight to boom point length( m) |
19.0 |
Width( overall)( m) |
14.13 |
Ground clearance( m) |
2.38 |
Track length on ground( m) |
9.89 |
Max speed( km / hour) 1st stage |
0.92 |
Max speed( km / hour) 2nd stage |
1.99 |
Tail swing radius( m) |
8.4 |
Hydraulic motors |
2 axial piston variable motor( per side) |
Maximum tractive force( kN) |
27270 |
Swing motors |
4 x P & H SR motors @ 200 HP each |
Swing drives |
4 x stage planetary transmission |
Brakes |
Spring loaded / hydraulically released |
Max swing speed |
3.12 rpm |
Slew ring gear |
Sealed triple roller seing ring, internal teeth |
System voltage |
24 V |
Batteries in series, parallel |
6 x 12V / 6 x 210 Ah |
Working spot lights |
22 x high brightness LED lights |
Service lights |
16 x LED lights |
APU unit( optional) |
24 VDC system( 260A) |
Fuel Tank |
8574 L |
Hydraulic oil tank |
2082 L |
Engine Oil |
2 x 190 L |
RH pump drive transmission |
63 L |
LH pump drive transmission |
58 L |
Propel gearcase |
2 x 227 L |
Swing gearcase |
4 x 76 L |
Crowd gearcase |
530 L |
Hoist Gearcase |
515 L |
RH / LH engine high temp coolant |
1317 L |
RH / LH engine low temp coolant |
639 L |
Spec. Catalog No. |
EN-2650CXHS01-0420-V4 |
South African distributor |
Komatsu SA |
